Removing Casing (Lower Part)

  1. Remove trim panel -1-  .

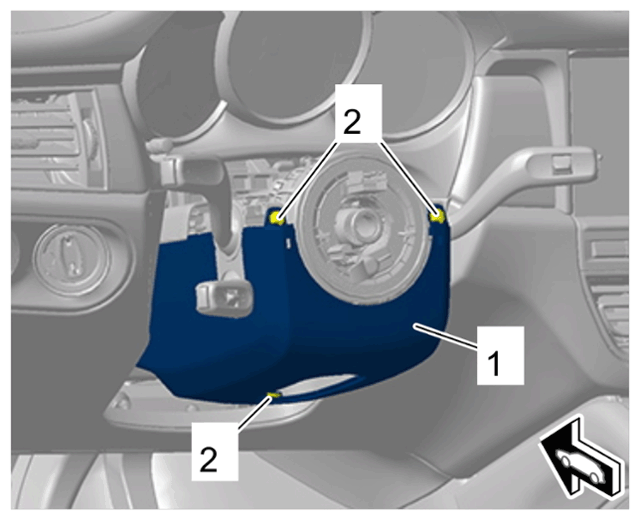

    G15156615Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Casing (lower part)

    1. 1.1 Turn the steering wheel so that the screws -2-  on the front are accessible.
    2. 1.2 Unscrew screws on casing -2-  .
    3. 1.3 Remove trim panel -1-  .
