Technical Values

Location	Description	Type	Basic value

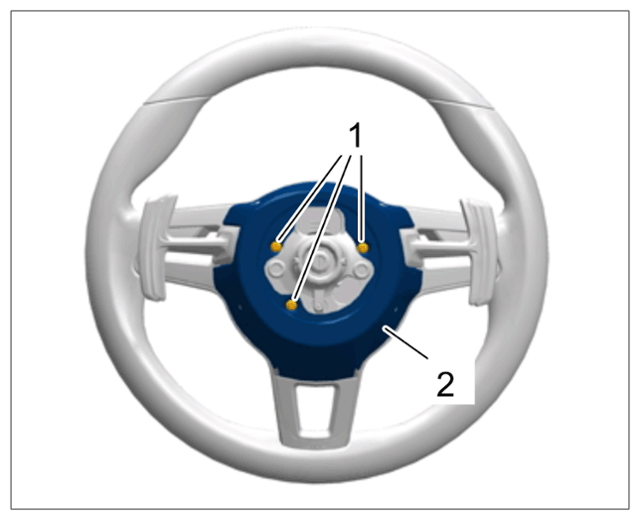

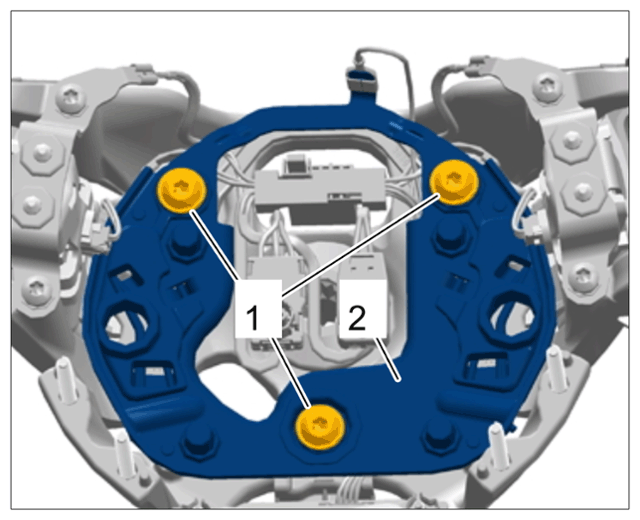

Screws securing contact bridge to steering wheel	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Contact bridge

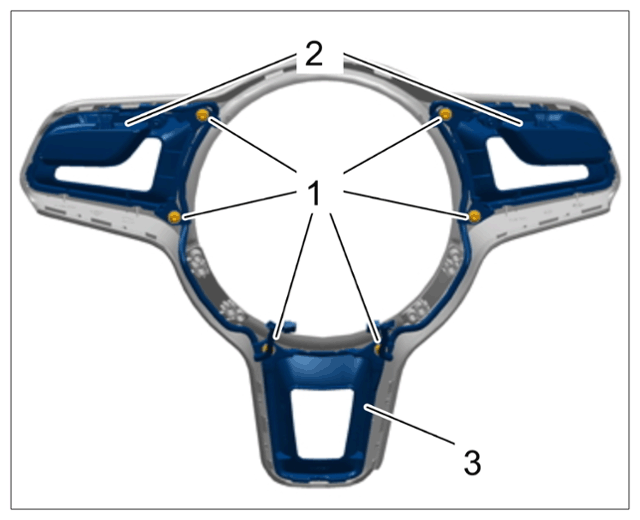

Screws securing multi-functional switch and front cover to steering wheel	Item 1	Tightening torque 0.45 Nm (0.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Multi-functional switch and trim to main cover

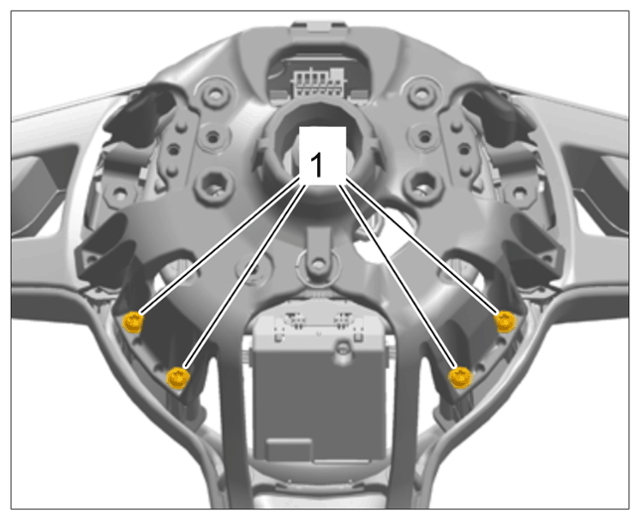

Screws securing main cover to steering wheel	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Main cover

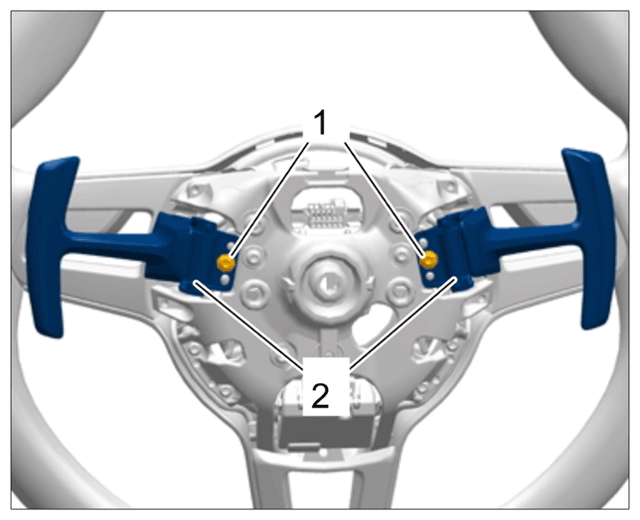

Screws securing paddles to steering wheel	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Paddles to steering wheel
Screws securing rear cover to steering wheel	Item 1	Tightening torque	2.7 Nm (2.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear cover
