Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

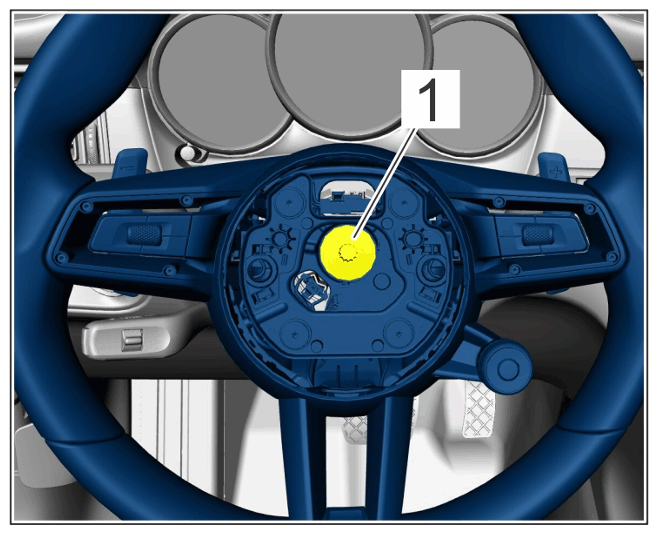

| Steering wheel to steering column | Item 1: Internal serration screw, M18 x 1.5 x 18/always replace following removal (micro-self-locking thread) | Initial tightening | 30 Nm (22.1 ftlb.) | ||
|
Screw for steering wheel |
|||||
| Steering wheel to steering column | Item 1: Internal serration screw, M18 x 1.5 x 18/always replace following removal (micro-self-locking thread) | Final tightening | + 90° | ||
|
Screw for steering wheel |
|||||
