Installing Steering Wheel

1. Installation is performed in reverse order. Pay particular attention to the following:
   1. 1.1 Wheels must be in straight-ahead position.
   2. 1.2 Markings -1-  between the steering wheel and steering column must be aligned.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

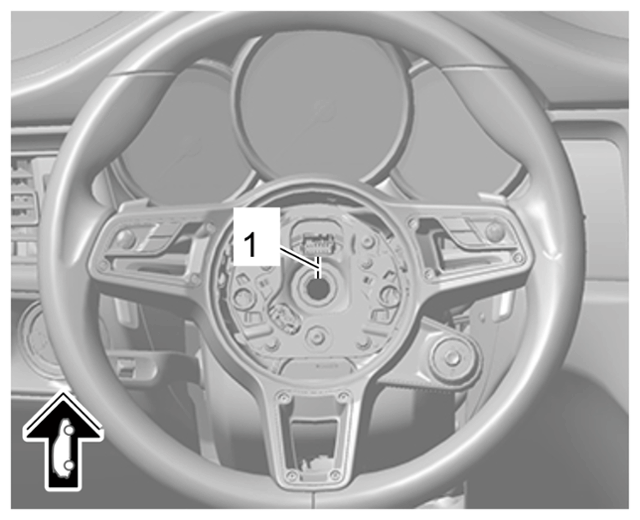

      Steering wheel marking

   3. 1.3 Replace screw -1-  .
   4. 1.4 Tighten screw -1-  .

      > Initial - tightening 30 Nm (22.1 ftlb.)

      > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

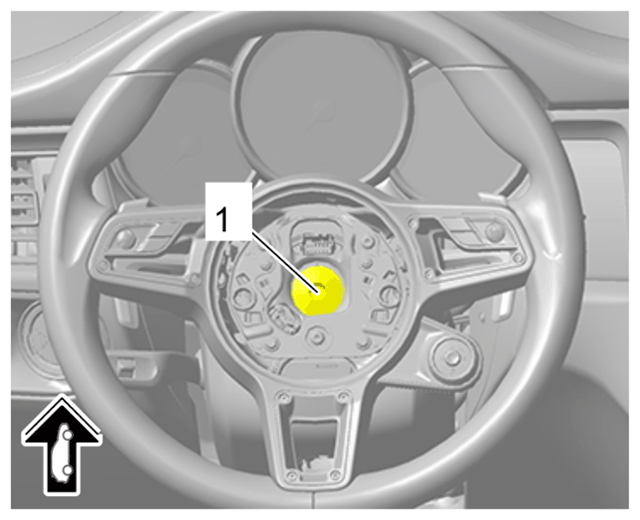

Mounting for steering wheel
