Removing Ventilation Cover

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

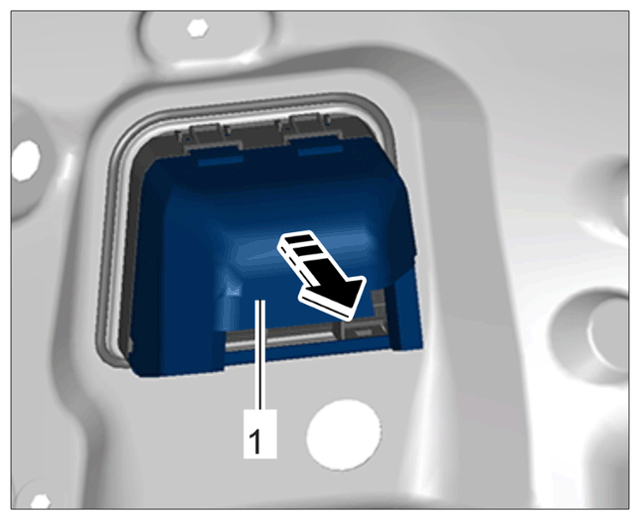

1. Carefully unclip ventilation cover -1-  at the top and bottom and remove it -arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ventilation cover

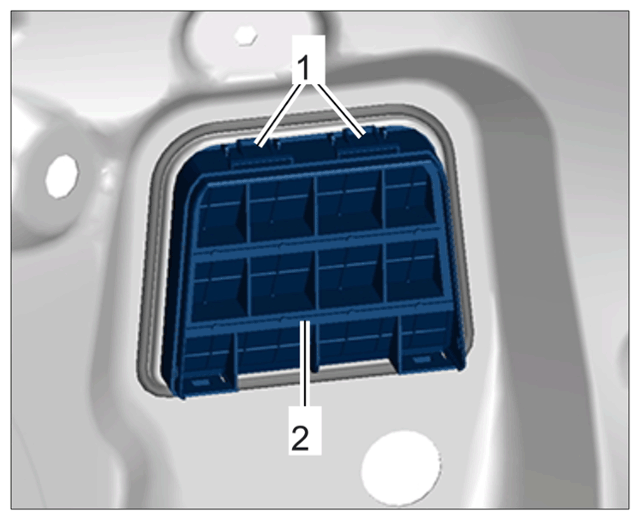

2. Press in clips at the top -1-  and carefully remove ventilation cover -2-  by pulling it outwards.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ventilation cover
