Installing Rear Centre Air Jet

  1. Install rear centre air vent -1-  on covering frame for centre console -2-  .

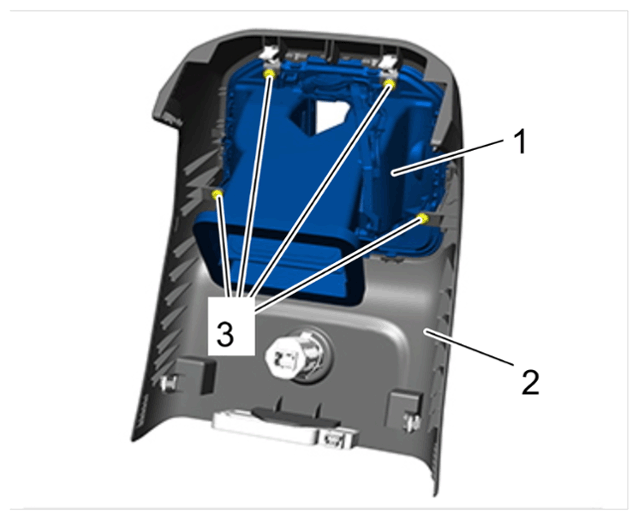

    G15162098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear centre air vent

    1. 1.1  Position rear centre air vent -1-  .
    2. 1.2  Fit and tighten screws -3-  .
      • Tightening torque 1.5 Nm (1 ftlb.)
