Removing Air IONISER

  1. Remove air ioniser -1-  .

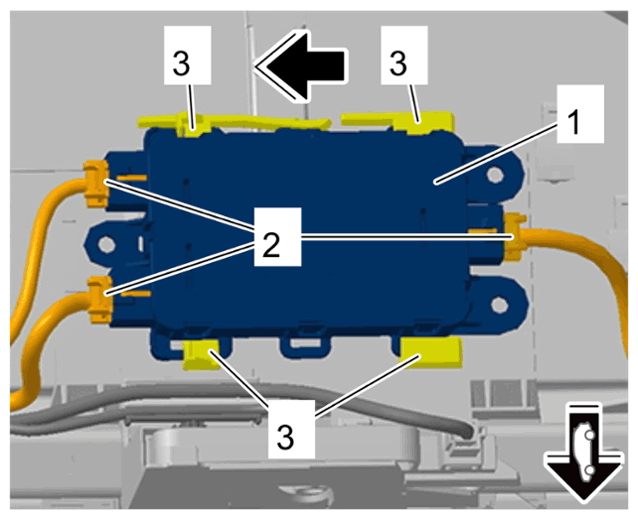

    G15162089Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air ioniser

    1. 1.1  Release and disconnect electric plug connections -2-  .
    2. 1.2  Push the air ioniser -1-  in -direction of arrow-  out of the fastening parts -3-  and remove it.
