Removing Fan Motor

  1. Remove cover -1-

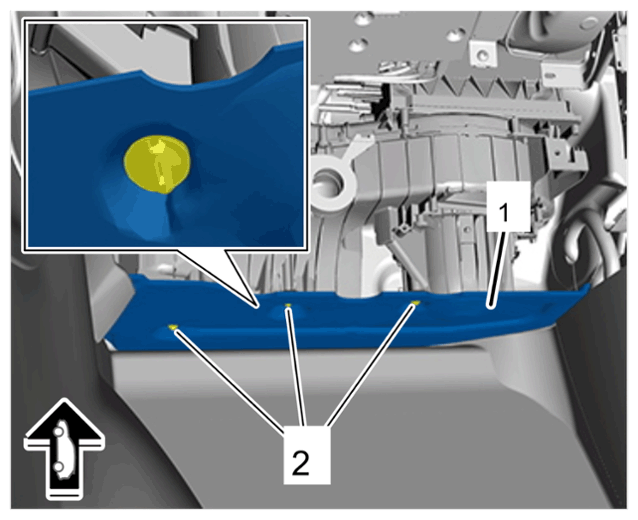

    G15162085Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover under fan motor

    1. 1.1  Release clips -2-  and remove cover -1-  .
  2. Remove fan motor -1-  .

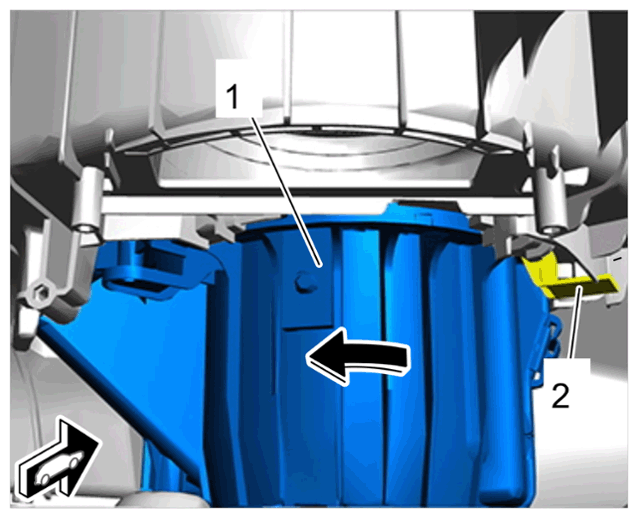

    G15162086Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fan motor

    1. 2.1  Press locking mechanism -2-  down, turn fan motor -1-  in -direction of arrow-  and remove it.
