Removing Heating/Fresh-Air Unit (Air Intake Tract)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

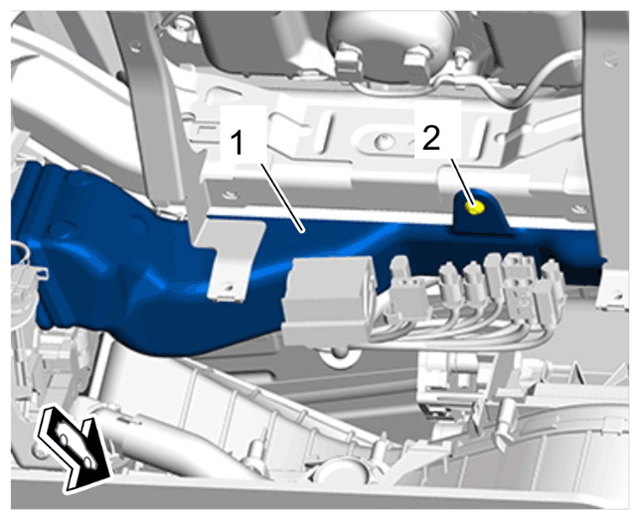

Air guide for right dashboard vent

1. 1.1  Unscrew screw -2-  .
2. 1.2  Unclip air duct for the right dashboard vent -1-  from the right dashboard vent and heating/fresh-air unit.
3. 1.3  Guide air duct for right dashboard vent -1-  out of the footwell.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

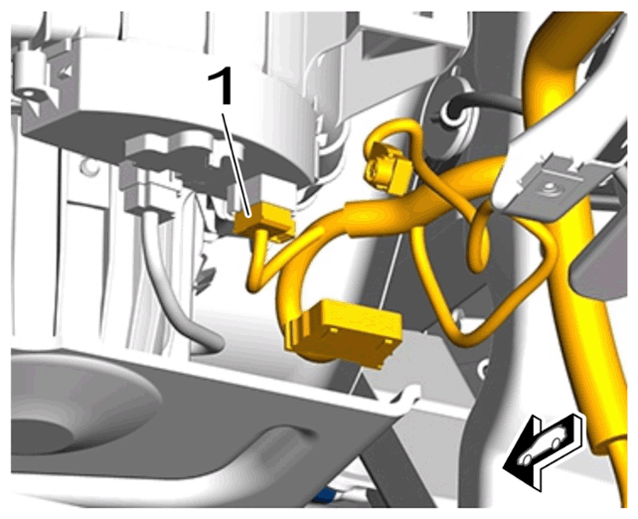

Electric plug connection for blower regulator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

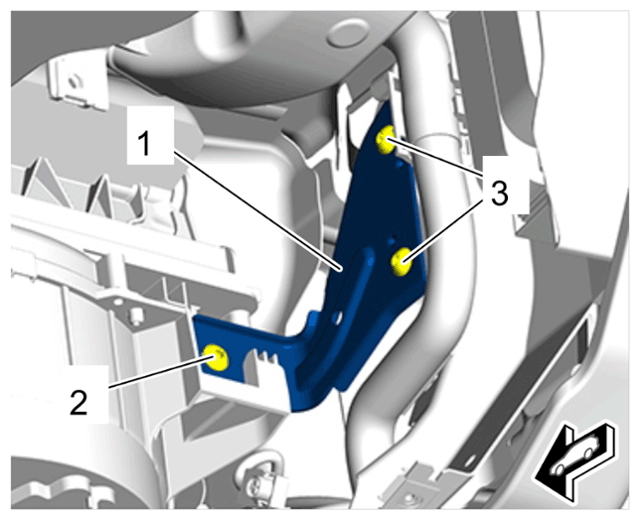

Air intake tract holder

1. 3.1  Unscrew and remove screws -2 and 3-  .
2. 3.2  Remove air intake tract holder -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

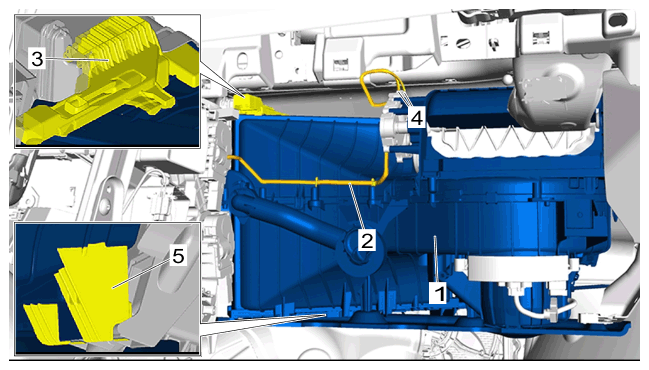

Air intake tract

1. 4.1  Unclip wiring harness -2-  .
2. 4.2  Release locking mechanism -3-  .
3. 4.3  Swivel the air intake tract -1-  down.
4. 4.4  Release and disconnect electric plug connections for servo motors -4-  .
5. 4.5  Disengage holder -5-  and guide air intake tract -1-  out of the footwell.
