Installing Heating/Fresh-Air Unit (Air Intake Tract)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

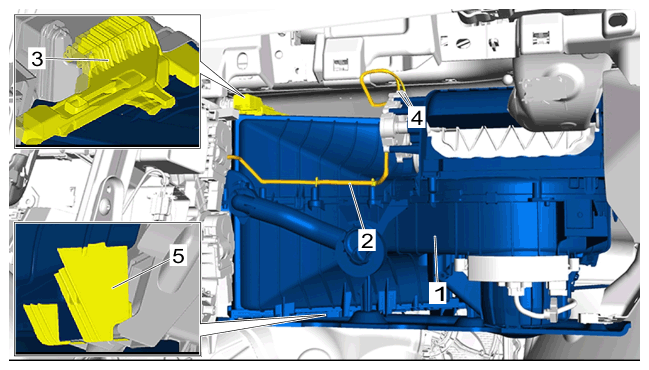

Air intake tract

1. 1.1  Position air intake tract in the footwell and engage holder -5-  .
2. 1.2  Push on and lock electric plug connections for servo motors -4-  .
3. 1.3  Swivel the air intake tract -1-  up.
4. 1.4  Lock locking mechanism -3-  .
5. 1.5  Clip in wiring harness -2-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

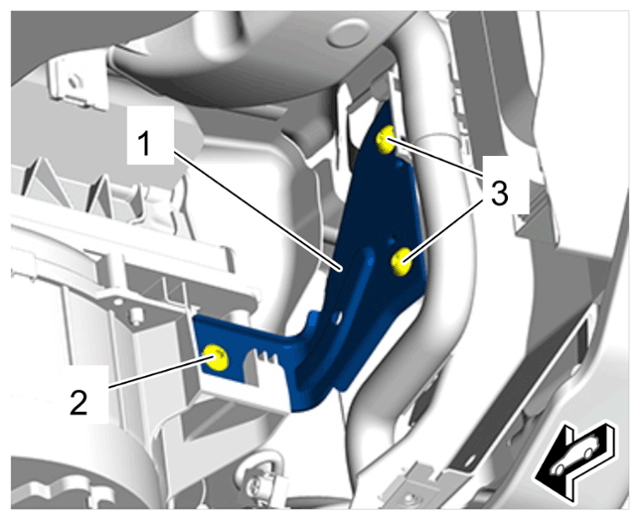

Air intake tract holder

1. 2.1  Position air intake tract holder -1-
2. 2.2  Screw in and tighten screws -3-  .
   • Tightening torque 9 Nm (6.5 ftlb.)
3. 2.3  Screw in and tighten screw -2-  .
   • Tightening torque 3.6 Nm (2.6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

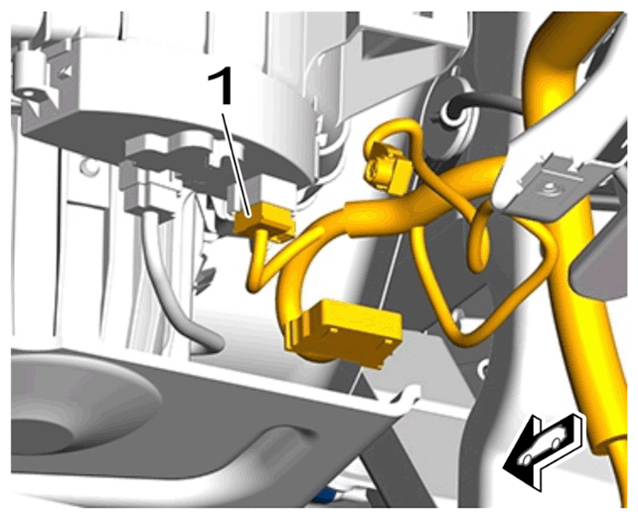

Electric plug connection for blower regulator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

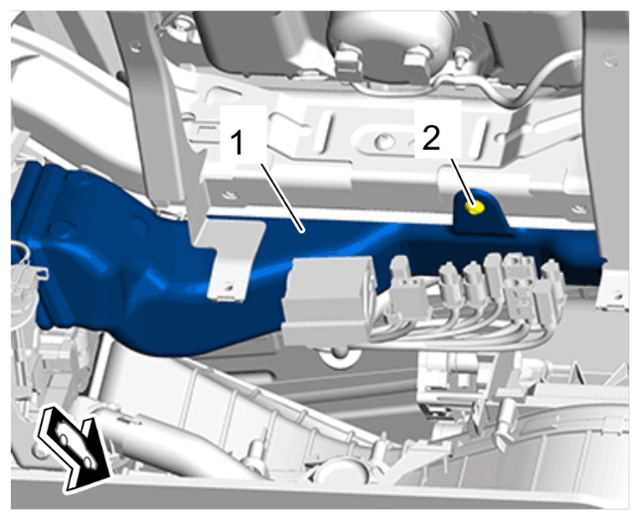

Air guide for right dashboard vent

1. 4.1  Position air duct for the right dashboard vent -1-  in the footwell.
2. 4.2  Clip in air duct for the right dashboard vent -1-  on the right dashboard vent and heating/fresh-air unit.
3. 4.3  Screw in and tighten screw -2-  .
   • Tightening torque 1.5 Nm (1 ftlb.)
