Overview Of Heating/Fresh-Air Unit

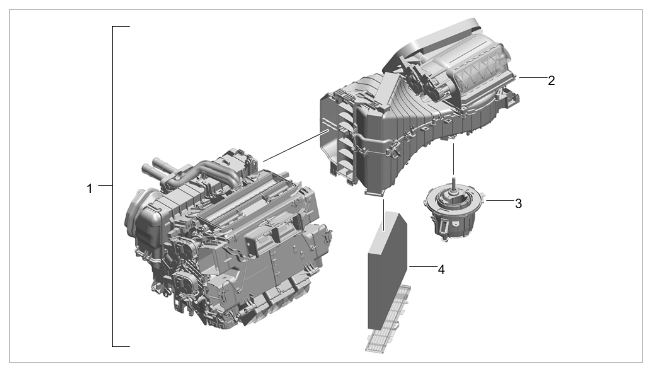

Fig 1: Heating/Fresh-Air Unit Component Locations
G15162055Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Overview of heating/fresh-air unit

  1. Heating/fresh-air unit
  2. Air intake tract
  3. Heater/fresh-air fan motor
  4. Particle filter
