6X Body-Equipment Outside-General -- 95B - MACAN (95B)
>>
WM, 6X00IN Technical Values
>>
66 - Exterior Equipment
>>
C-Pillar Cover
C-Pillar Cover
Location
Description
Type
Basic value
Tolerance
Screws securing C-pillar cover to rear door
Item 1 and 3
Tightening torque
2.5 Nm (1.75 ftlb.)
Courtesy of AUDI OF AMERICA, LLC

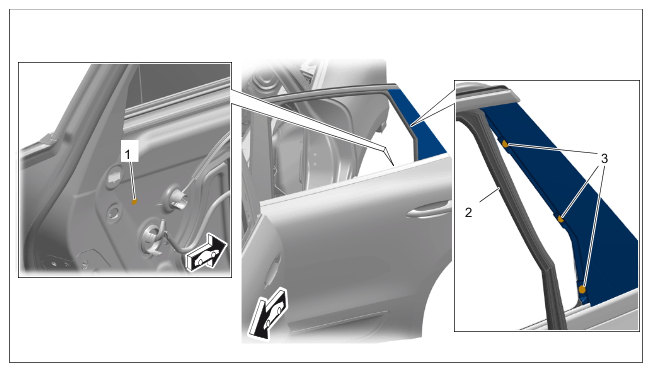

C-pillar cover
Courtesy of AUDI OF AMERICA, LLC
