Installing Rear Brake Disc
WARNING: This page is about a different variant/trim than selected.
- Check that all parts are in perfect condition (visual inspection) and replace them if necessary.
- Clean the levelling and centring surfaces on the rear brake disc and rear wheel hub.
- Install rear brake disc -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

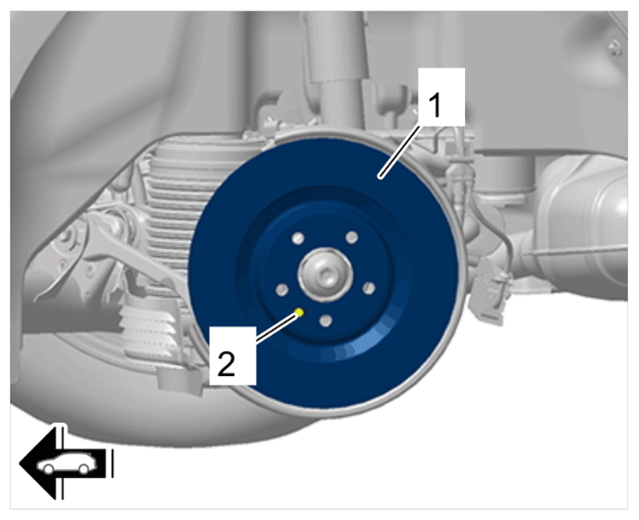

Rear brake disc
- 3.1 Fit rear brake disc -1-
and tighten screw -2-
.
>
