Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance1 | Tolerance2 |
|---|---|---|---|---|---|
| Compressor to holder | M6 thread | Tightening torque | 8 Nm | ||
| Valve unit to holder | M6 thread | Tightening torque | 4.5 Nm | ||
| Compressor/valve unit holder to underbody | M8 thread | Tightening torque | 20 Nm | ||
| Pressure lines to valve block | Union nuts | Tightening torque | 3.5 Nm | ||
| Pressure line to compressor | Union nut | Tightening torque | 3.5 Nm | ||
| Pressure accumulator to body | Tightening torque | 20 Nm | |||
| Pressure line to pressure accumulator | Union nut | Tightening torque | 3.5 Nm | ||
| Rear level sensor to holder | Tightening torque | 5 Nm (3.5 ftlb.) | |||
| Front level sensor to front-axle carrier | M8 thread | Tightening torque | 20 Nm (15 ftlb.) | ||
| Fastening nuts securing control unit to body | Item 2 | Tightening torque | 4.3 Nm (3.2 ftlb.) | ||
|

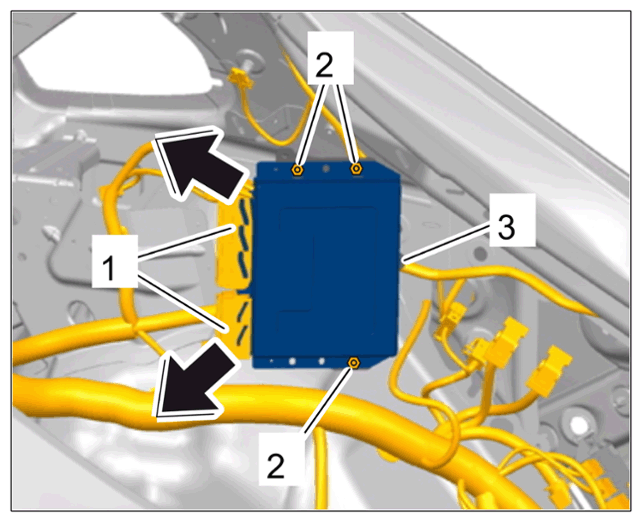

Mounting for PASM control unit |
