Lifting The Vehicle

Information

When driving onto the lifting platform, pay particular attention to the following:

• Sufficient distance between the lifting platform and vehicle.
• For work in the front footwell, raise the vehicle in such a way that the doors can be opened wide enough.

1. Drive vehicle onto the lifting platform.
2. On vehicles with air suspension/levelling system: Switch off the levelling system.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

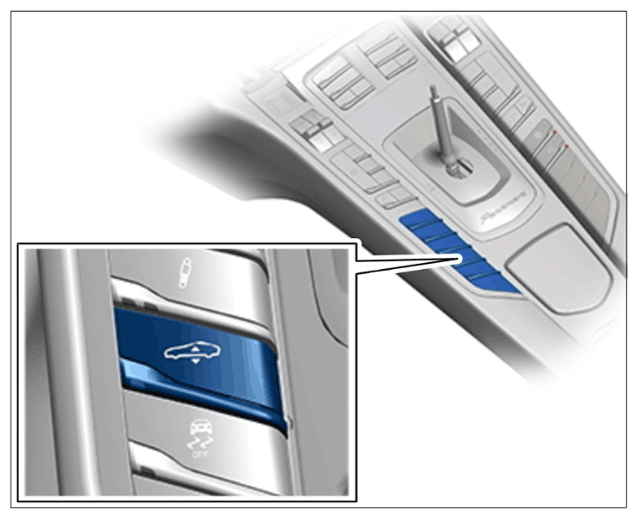

   Levelling system button

   1. 2.1 Switch on the ignition.
   2. 2.2 Press and hold the levelling system button until the message >>Levelling system switched off<< appears on the instrument cluster. > Levelling system button
   3. 2.3 Switch off the ignition.
   WARNING: Vehicle can fall down

   • Risk of squashing or crushing
   • Risk of damage to the vehicle

     → Do not place any solid objects under the raised vehicle.

     → Ensure that the lifting platform is prevented from lowering.

     → Remove solid objects before lowering the vehicle.

     → Raise the vehicle only at the take-up points provided.

3. Raise the vehicle at the four jacking points -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

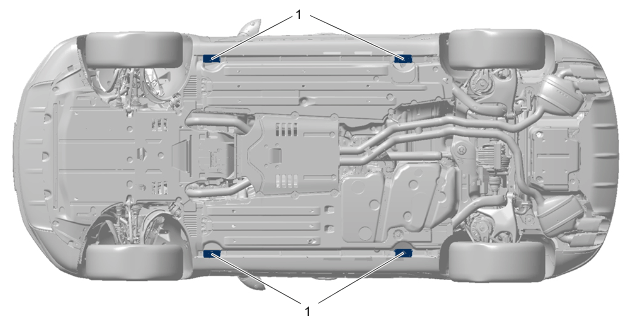

   Jacking points for vehicle
