Removing Oil Separator

WARNING: This page is about a different variant/trim than selected.

Loosen spring band clamp -1- using VAS 6890 - spring band clamp pliers and pull hose -2- off carbon canister solenoid valve -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

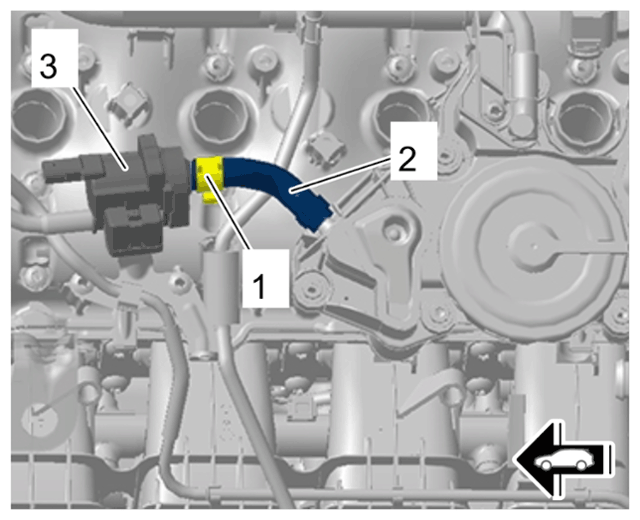

Hose on carbon canister solenoid valve
Remove oil separator -8- .

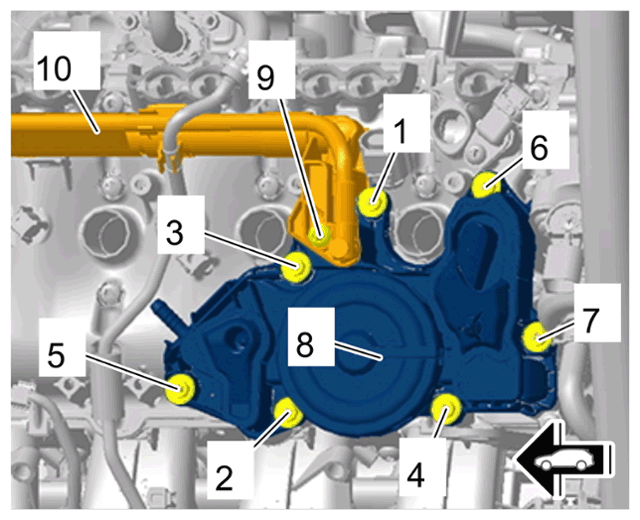

Fig 1: Oil Separator Screws Loosening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil separator
1. 2.1 Unscrew screw -9- and pull off positive crankcase ventilation line -10- .
2. 2.2 Remove screws on oil separator in the sequence -7 and 1- .
3. 2.3 Remove oil separator -8- .
4. 2.4 Replace seal on oil separator.
