Removing Engine Carrier

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
1. → Secure components to prevent them from falling down.

Information

This work can only be performed when the engine has been suspended on the body.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

Disconnect lines -1 and 2- from engine carrier.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

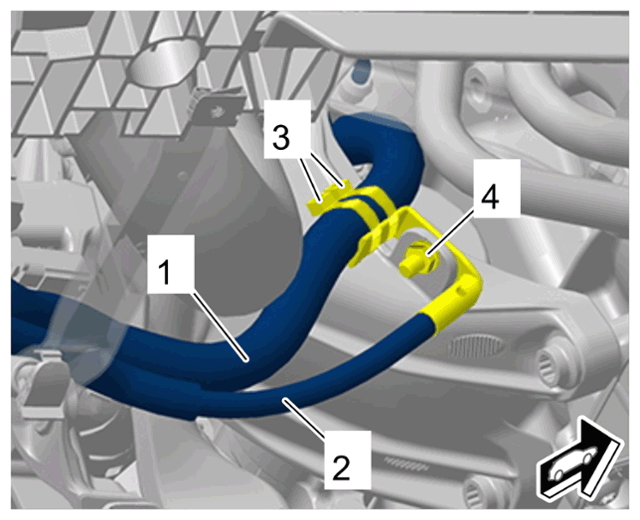

Lines on engine carrier
1. 1.1 Loosen tie-wrap -3- .
2. 1.2 Screw off nut -4- .
3. 1.3 Guide ground line -2- towards the right wheel housing.
Remove engine carrier -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

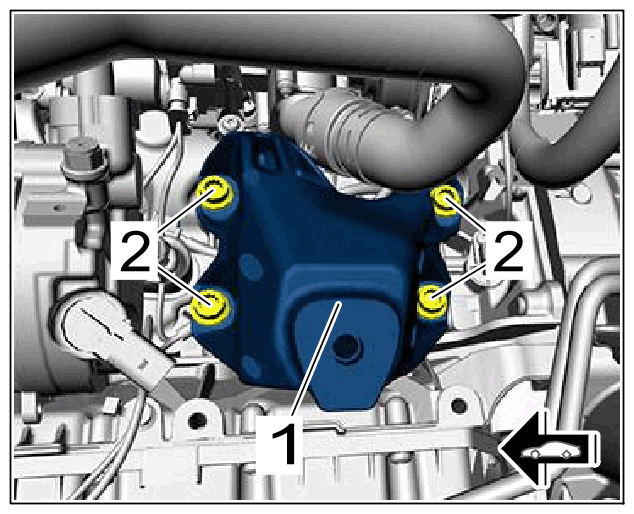

Engine carrier
1. 2.1 Unscrew screws -2- .
2. 2.2 Remove engine carrier -1- .
