Installing Oil Spray Jet

Information

Risk of damage to oil spray valves:

• Do not bend oil spray jets.
• Bent oil spray valves must be replaced.

1. Install oil spray jet. -1-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

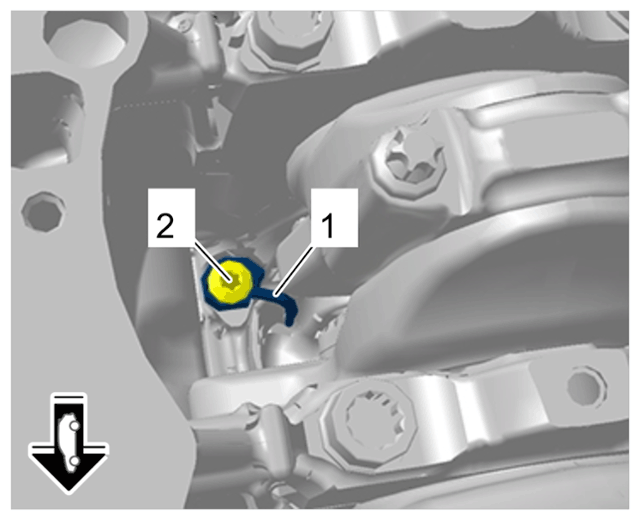

   Oil spray jet

   1. 1.1  Position oil spray jet. -1-
   2. 1.2  Fit and tighten new  screw on or spray jet. -2-

      Tightening torque 27 Nm (20 ftlb.)
