Supporting Engine On The Body (Engine Safety Device)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Danger of objects or loads falling down
- Risk of squashing or crushing
- → Secure components to prevent them from falling down.
Information
A unit lift, such as VAS 6931 - Transmission and Engine Jack or VAS 6931 - Transmission and Engine Jack with VAS 6867 - Mounting Plate , can also be used to support the raised vehicle while you are working.
Information
The engine must be supported on the body in order to remove the front axle, oil guide housing, oil pump or similar components.
- Prepare engine safety device.
- 1.1 T40091/50-51 - Fit supports on the T40091/54-/55 - engine safety device supplement and T40091/54-/55 - engine safety device s upplement .
- 1.2 T40091/50-51 - Fit supports with the T40091/54-/55 - engine safety device supplement and T40091/54-/55 - engine safety device supplement on the spring strut domes.
- Position tools on the longitudinal member.

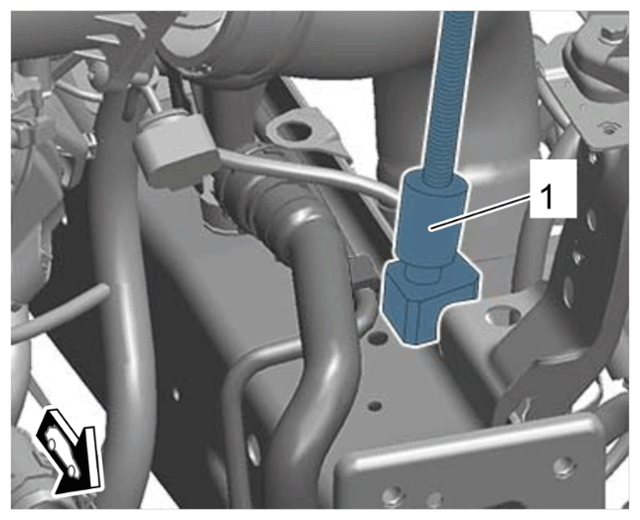

Longitudinal member
- 2.1 Position T40093/51 - adjustable foot-1- on the left longitudinal member.
- 2.2 Position T40093/50 - foot-1- on the right longitudinal member.
- T40093/3P - Screw in the support-2-
on the T40093/51 - adjustable foot-5-
and T40093/50 - foot-1-
and move them to the same height.

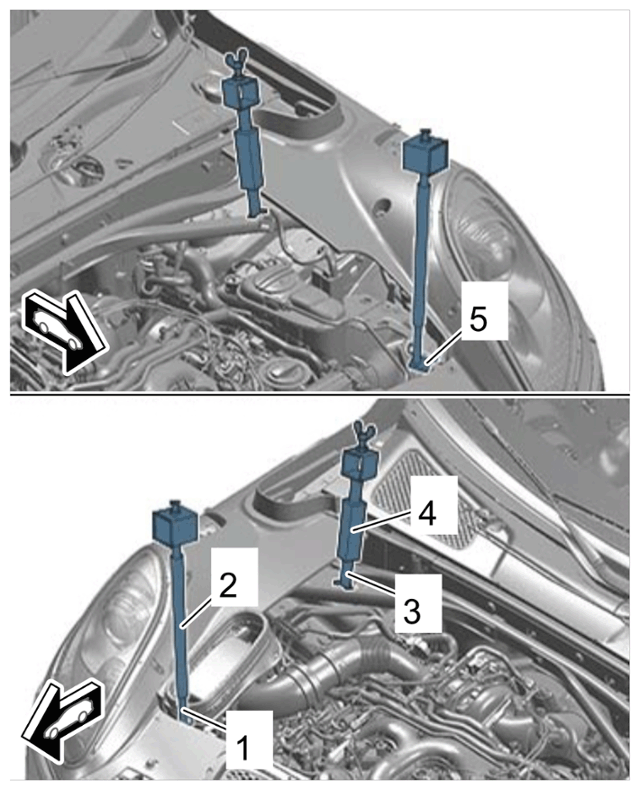

Tools on the body
- Mount T40091/1 - pipes-1-
on supports.

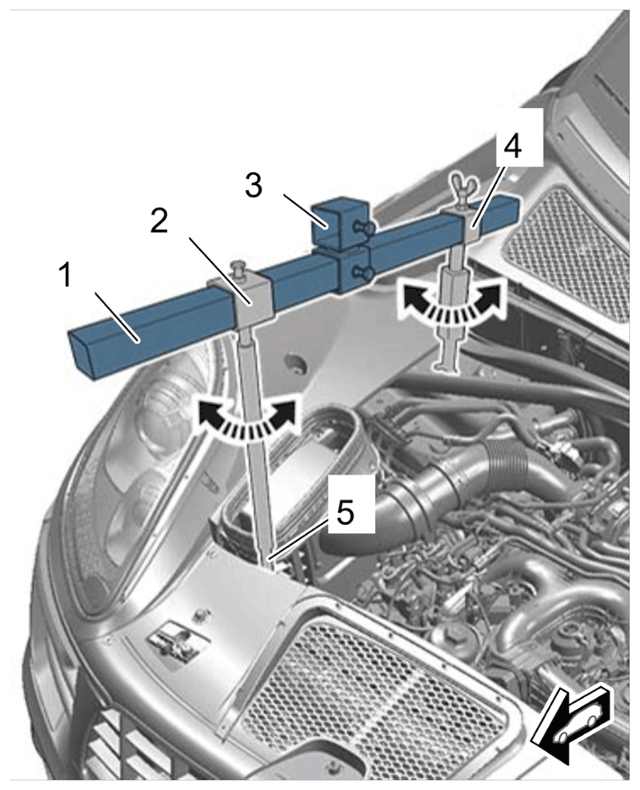

Pipe on support
- 4.1 Push the T40091/1 - pipe-1- at both ends through the T40093/3P - support as far as the middle.
- 4.2 Push on the T40091/1 - connectors-1- at both ends of the two T40091/3 - pipes-3- .
- 4.3 Push the T40091/1 - pipe-1- through up to the T40091/50-51 - support-4- .

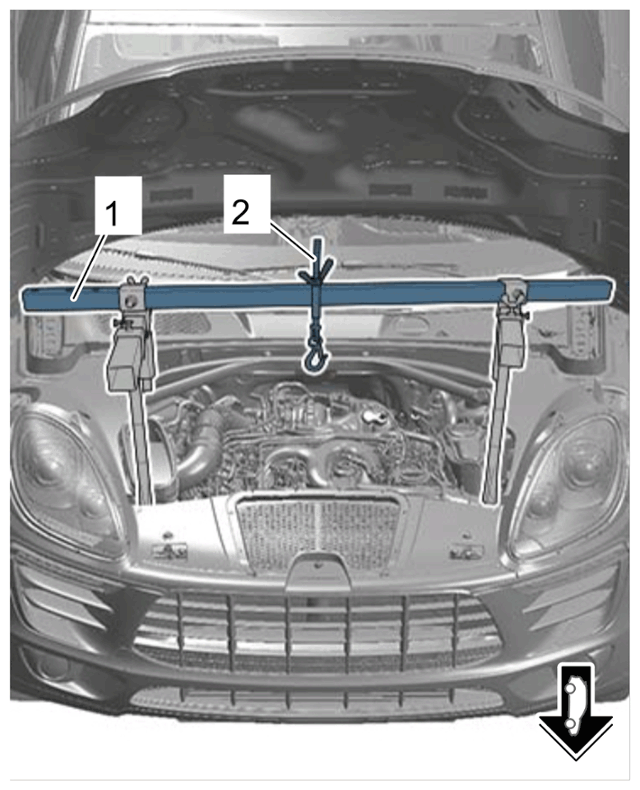

- Insert the 10-222A - safety device-1-
together with the spindle -2-
crosswise into the T40091/3 - connectors
.
Safety device
- Support the engine.

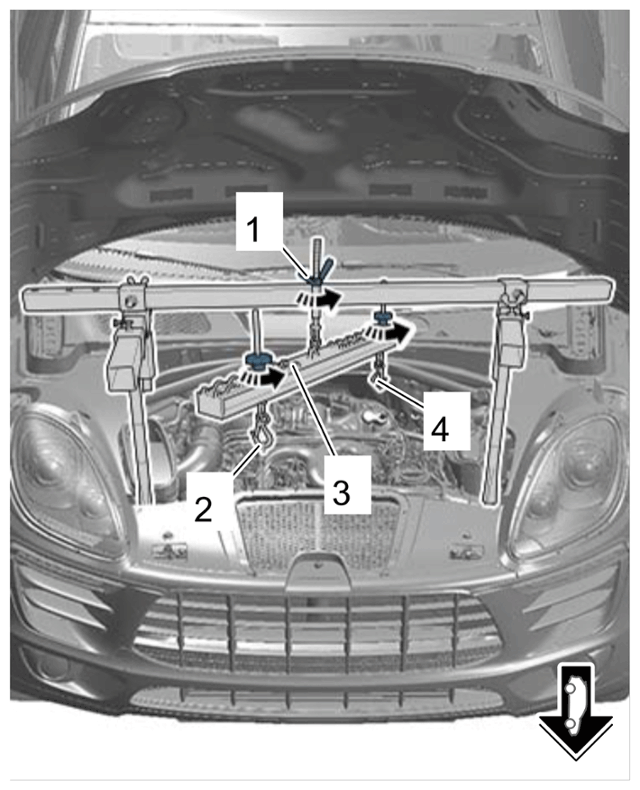

Lifting tackle
- 6.1 3033 - Secure the lifting tackle-3- to the spindle of the 10-222A - support bracket-1- .
- 6.2 Attach 10-222A - support bracket-1- at the fastening points -2 and 4- of the engine and pre-tension slightly.
