Installing Crankshaft Sealing Ring - Belt Side
WARNING: This page is about a different variant/trim than selected.

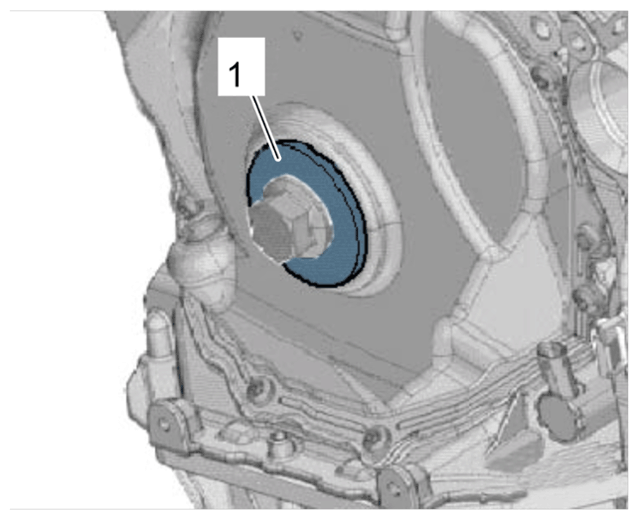

- Insert new
sealing ring using T10354 - thrust piece-1-
and screw for belt pulley up to the anchor block.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Installing crankshaft sealing ring
- T10354 - Thrust piece
must now be removed.
