Measuring Pistons
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Pointed or sharp objects
- Risk of cracks, pricks or cuts
- → Wear personal protective gear.

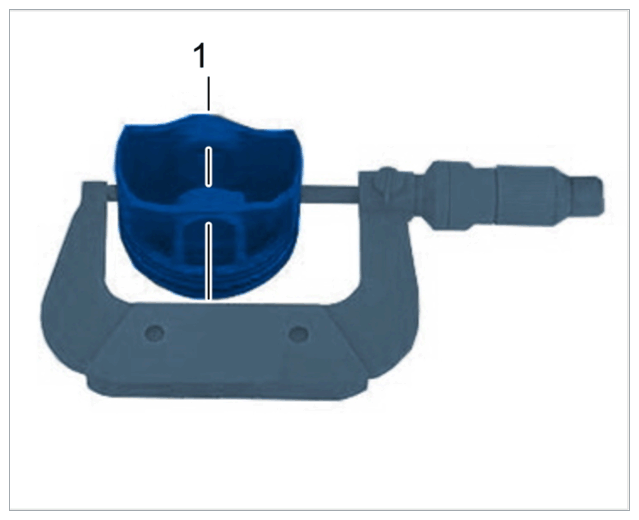

- Using a 75-100 mm outside micrometer, take a measurement approx. 15 mm from the lower edge of the piston, at a 90° angle to the piston pin axis -1- .
Measuring pistons
| Piston diameter | Basic measurement new (in mm) | Wear limit in mm |
|---|---|---|
| Nominal measurement | 82.42 | 0.04 |
Information
Nominal measurement without coating (thickness = 0.04 mm). The coating wears off.
