Removing Front Air Guide (Rear)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

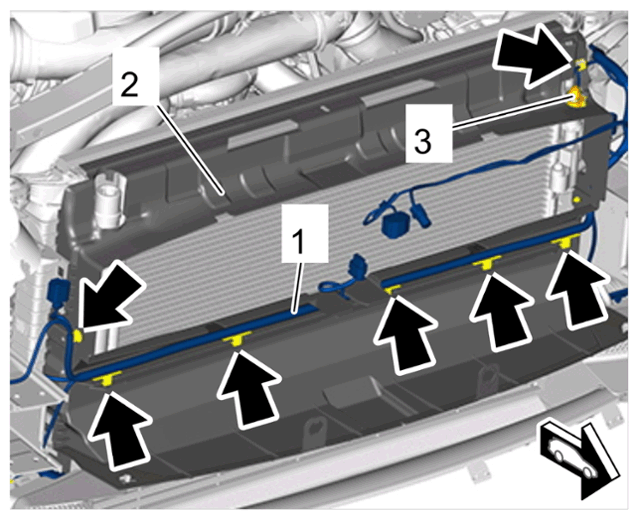

Line on front air guide (rear)

1. 1.1  Release and disconnect cable plug -3-  .
2. 1.2  Unclip clips -Arrows-  and move electric line aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

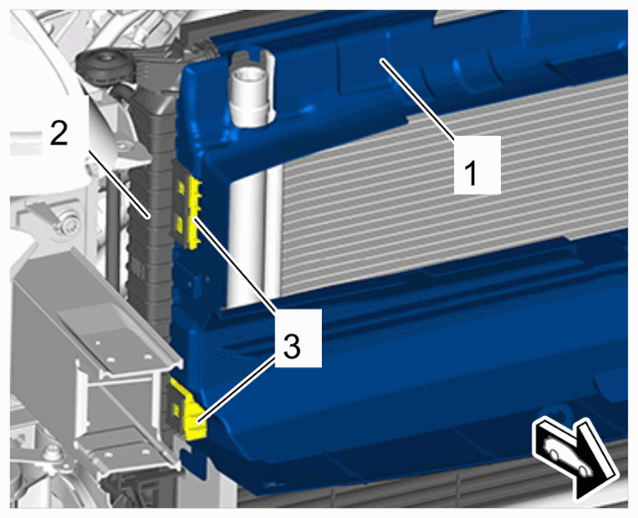

Front air guide (rear)

1. 2.1  Release locking lugs -3-  and remove air guide -1-  from radiator -2-  .
