Removing Control Unit For Memory Seat Adjustment

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Remove the ignition key and switch off load before disconnecting or removing load.

Information

Always comply with the regulations for handling ESD-sensitive components!

• Always wear approved work clothes and shoes when carrying out assembly work.
• Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
• Do not touch electric pins and plug contacts.

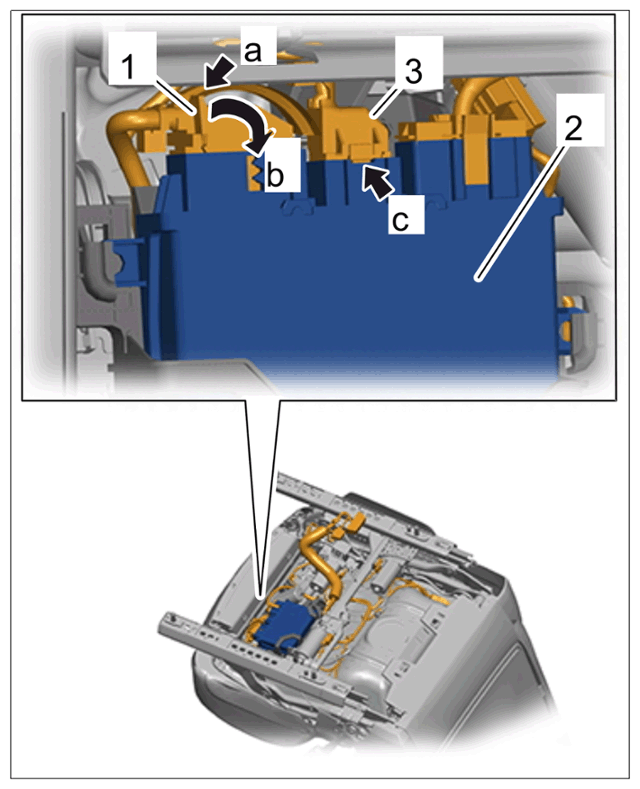

1. Release clip -1- (-a-)  , swivel it aside -b-  and remove electric plug connection from the control unit for memory seat adjustment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

2. Release electric plug connection -3- (-c-)  and disconnect it from the control unit for memory seat adjustment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

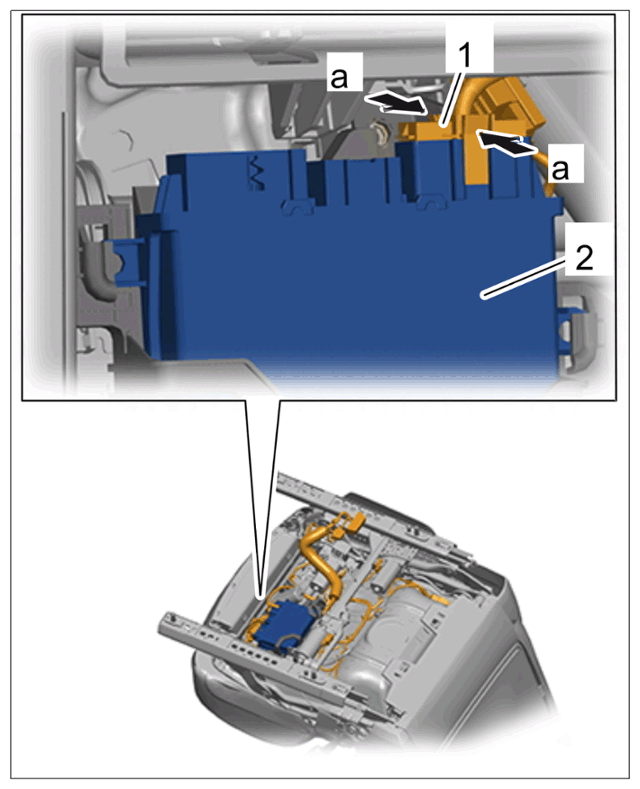

3. Release electric plug connection -1- (-a-)  and pull it off the control unit for memory seat adjustment -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

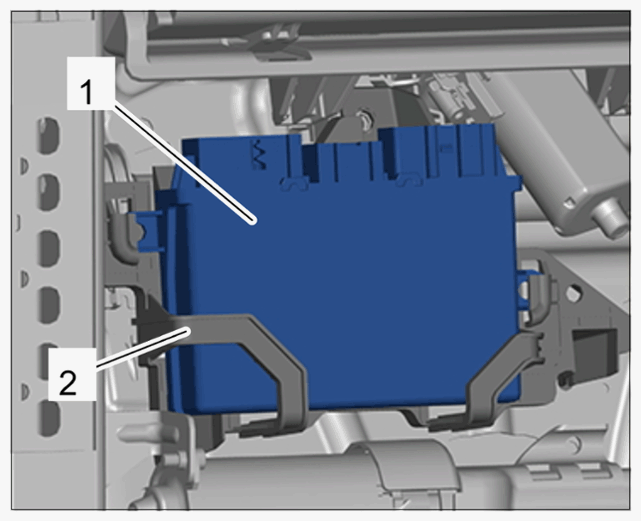

4. Disengage control unit for memory seat adjustment -1-  by moving it forward out of the holder -2-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit for memory seat adjustment
