Installing Lock For Rear Backrest At The Left And Right

Information

• Replace fastening screws with new fastening screws before installation.
• Self-locking nuts and screws must always be replaced before installation.

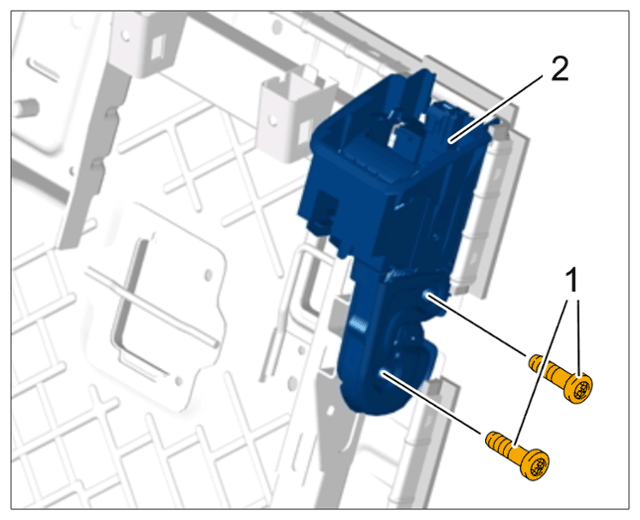

1. Position lock for rear backrest -2-  and tighten with new  screws > Tightening - torque 26 Nm (19 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest lock

2. Secure cover close to the backrest lock and close to the cover for the locking mechanism.

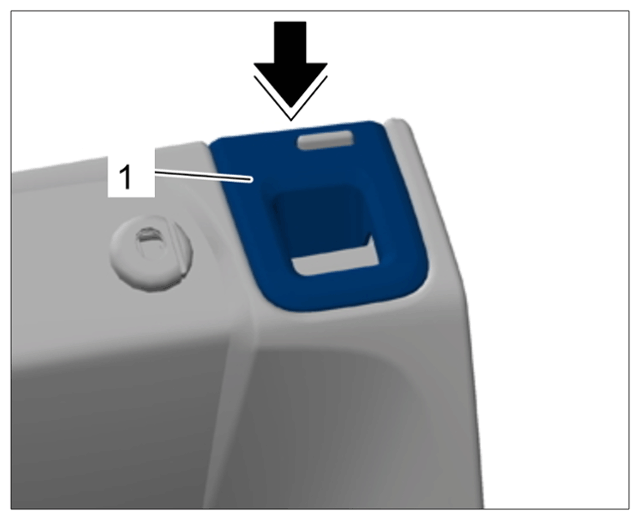

3. Fit cover on locking mechanism for backrest -1-  from above and clip it in -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on locking mechanism

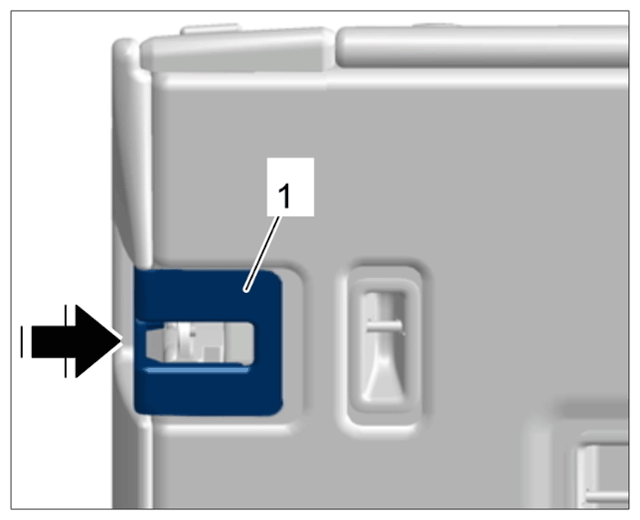

4. Fit cover on backrest lock -1-  at the sides and press it on securely -Arrow-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover for lock

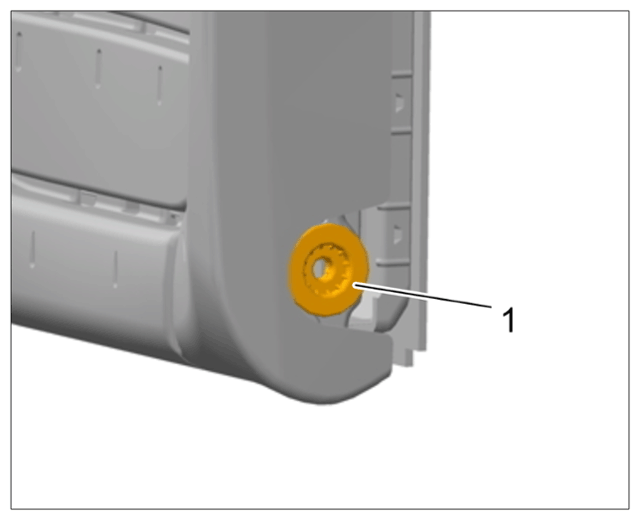

5. Clip in outer mount for rear backrest on backrest side -1-  and press firmly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer mount for rear backrest

6. Install rear backrest.
   • WM, 724719 - REMOVING AND INSTALLING REAR BACKREST
