Installing Lock For Rear Backrest At The Centre

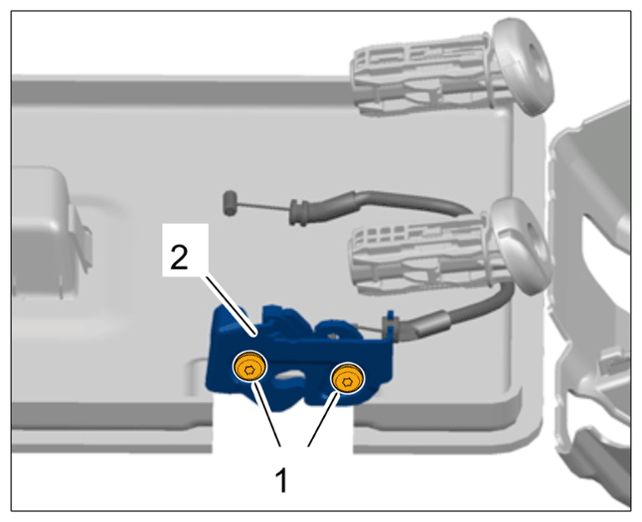

Position lock for rear backrest -2- and tighten to > Tightening - torque 26 Nm (19 ftlb.) . using new screws -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest lock

Install upper trim panel on load-through provision.

2.1 Engage operating cable for lock for rear backrest at the centre.

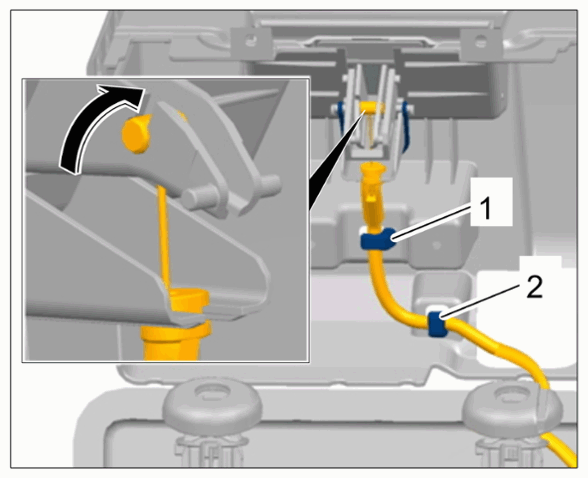

2.1.1 Engage operating cable at the seat belt mount -Arrow- .

G15161658

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Operating cable

2.1.2 Engage operating cable at the clips -1 and 2- .

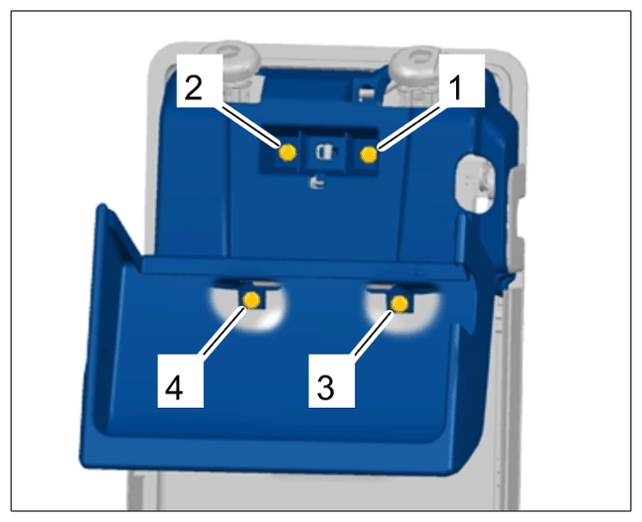

2.2 Tighten screws -1,_ 2, _3, _4_- to > Tightening - torque 3.5 Nm (2.5 ftlb.) .

Fig 1: Upper Trim Panel On Load-Through Provision Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper trim panel on load-through provision
2.3 Press cover piping into the retaining strips all the way around.

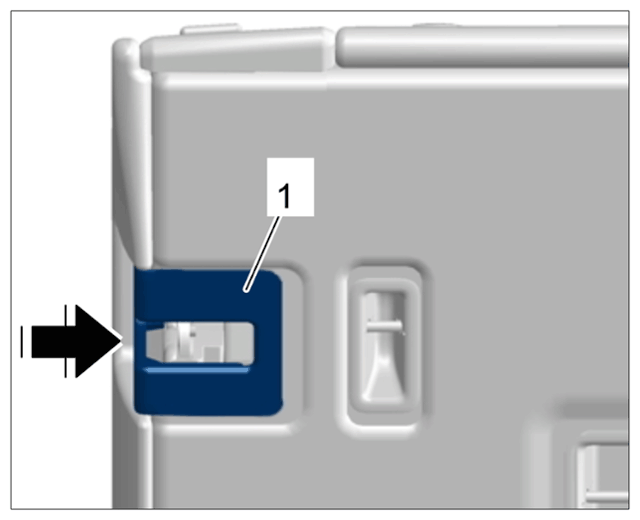

Fit cover on backrest lock -1- at the sides and press it on securely -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for lock

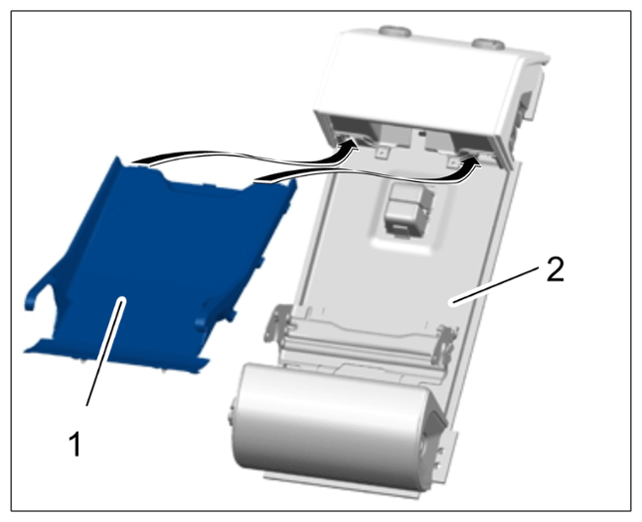

Install front trim cover -1- on the load-through provision -2- in such a way that the clip fastenings lock with an audible click in the lower area -Arrows- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front trim cover
