Installing Side Cover For Backrest

  1. Install side cover for backrest -2-  .

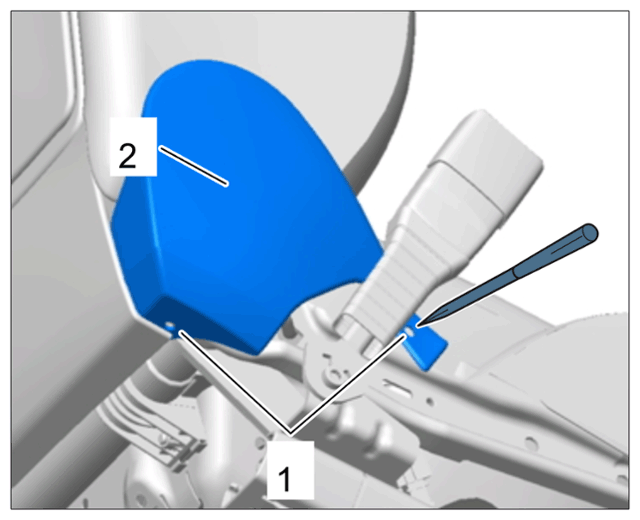

    G15161551Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side cover for backrest

  2. Press in expansion rivets -1-  and secure with the pins.
