Installing Rear Cover For Backrest

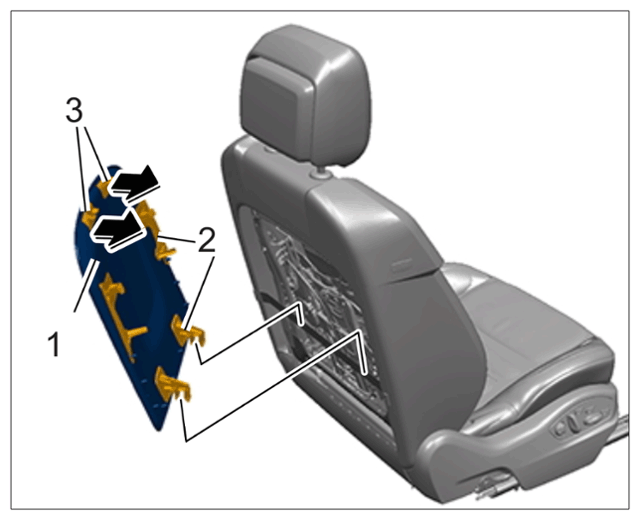

  1. Insert rear cover for backrest -1-  down into the bracket -2-  .
    G15161549Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear cover for backrest

  2. Lock fixing clips -3-  for rear cover for backrest in the backrest -Arrows-  .
  3. Engage rear cover for backrest -1-  on the underside of the front seat -2-  .
    G15161550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Backrest cover
