Replacing Backrest Frame

Information

The required steps can vary depending on equipment.

The instructions provided in the document are for vehicles with the maximum possible equipment.

1. Remove padding for front backrest.
   • WM, 741719 REMOVING AND INSTALLING PADDING FOR FRONT BACKREST
2. Remove headrest guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

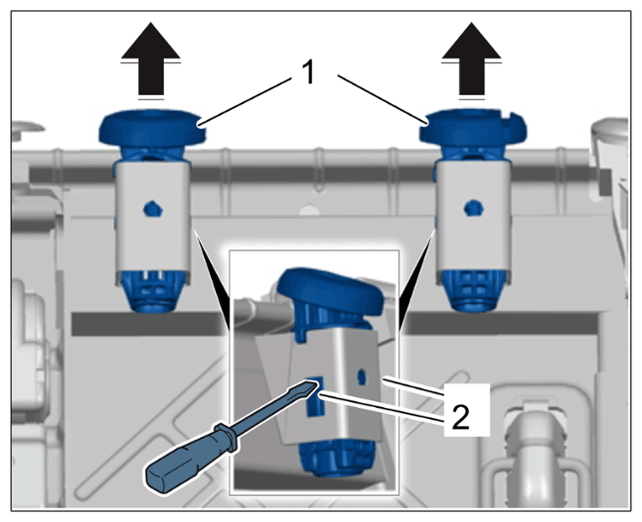

   Headrest guide

   1. 2.1  Press in fixing clips -2-  on the left and right and pull headrest guide up and out -Arrows-  .
3. Remove lumbar support.
   • WM, 723419 - REMOVING AND INSTALLING LUMBAR SUPPORT
4. Remove air cushion for backrest.
   • WM, 721719 - REMOVING AND INSTALLING AIR CUSHION FOR BACKREST

   Remove motor for air cushion.

   • WM, 723919 - REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
5. Remove suction fan for backrest surface.
   • WM, 741619 REMOVING AND INSTALLING SUCTION FAN FOR BACKREST SURFACE
6. Remove side airbag.
   • WM, 696319 REMOVING AND INSTALLING FRONT SIDE AIRBAG
7. Remove wire harness for backrest.
8. Replace backrest frame.
9. Position wire harness for backrest.
10. Install side airbag.
    • WM, 696319 REMOVING AND INSTALLING FRONT SIDE AIRBAG
11. Install suction fan for backrest surface.
    • WM, 741619 REMOVING AND INSTALLING SUCTION FAN FOR BACKREST SURFACE
12. Install motor for air cushion.
    • WM, 723919 - REMOVING AND INSTALLING MOTOR FOR AIR CUSHION
13. Install air cushion for backrest.
    • WM, 721719 - REMOVING AND INSTALLING AIR CUSHION FOR BACKREST
14. Install lumbar support.
    • WM, 723419 - REMOVING AND INSTALLING LUMBAR SUPPORT
15. Install headrest guide.
16. Install padding for front backrest.
    • WM, 741719 REMOVING AND INSTALLING PADDING FOR FRONT BACKREST
