Removing Backrest Frame

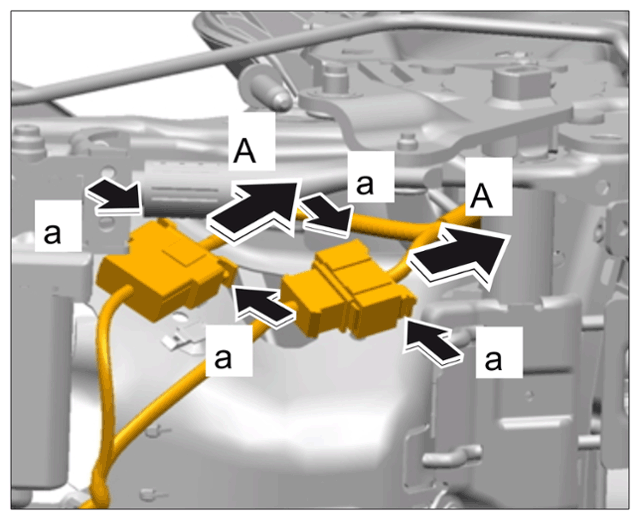

Release two electric plug connections under the seat -arrows a- and disconnect them -arrows A- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for backrest

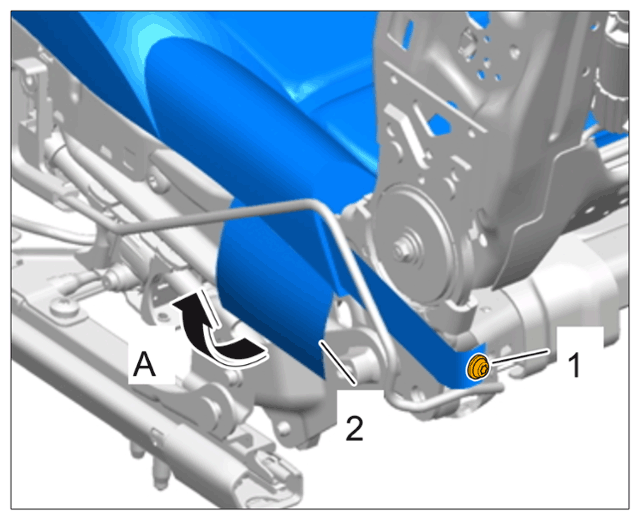

Pull out fixing clip -1- and detach cover for rear seat surface -2- (-arrow A-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear seat cover

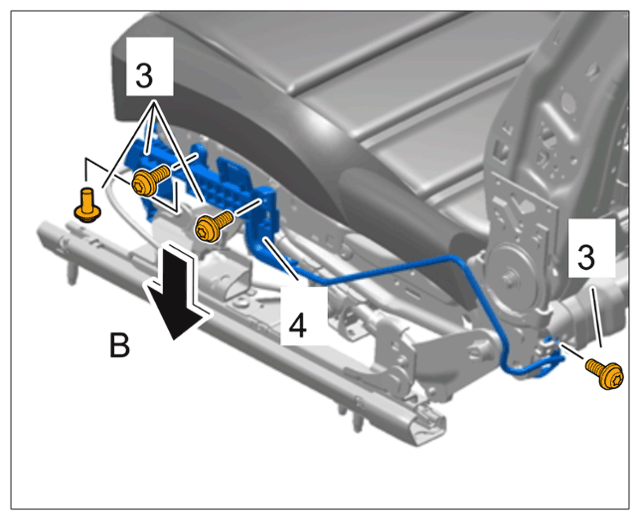

Unscrew fastening screws -3- , pull bracket -4- down -arrow B- out of the catches and detach cover on seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side bracket

A second mechanic is required:

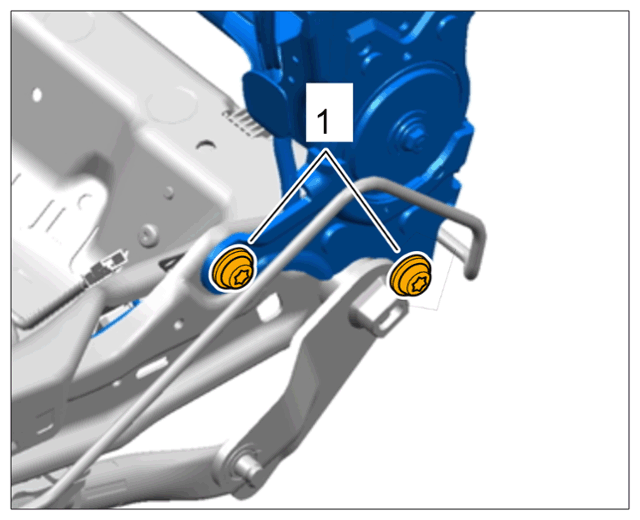

First mechanic: Unscrew two fastening screws -1- from he backrest frame on both sides. Fit new screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame
Second mechanic: Pull electric lines through between the seat frame and seat padding.
