Installing Backrest Frame

A second mechanic is required:

1. First mechanic:  Fit backrest frame.
   1. 1.1  Fit backrest frame on seat frame.
   2. 1.2  Pull electric line through between the seat frame and seat padding.
2. Second mechanic:  Tighten two neue  fastening screws -1-  for the backrest frame on both sides. > Tightening - torque 33 Nm (24 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Backrest frame

3. Engage bracket -6-  from below -arrow J-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

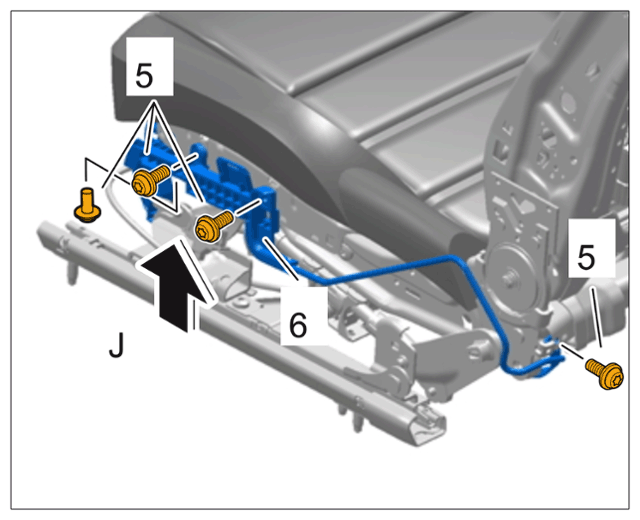

   Side bracket

4. Tighten fastening screws -5-  . > Tightening - torque 7.5 Nm (5.5 ftlb.)  .
5. Fit fixing clip -7-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

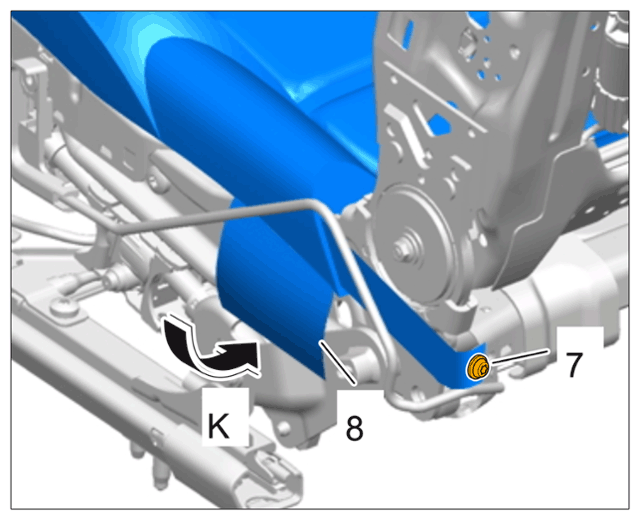

   Rear cover

6. Engage rear side cover -8-  on the seat frame -arrow K-  .
7. Plug in two electric plug connections on the underside of the seat -arrows A-  until the connector engages securely.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

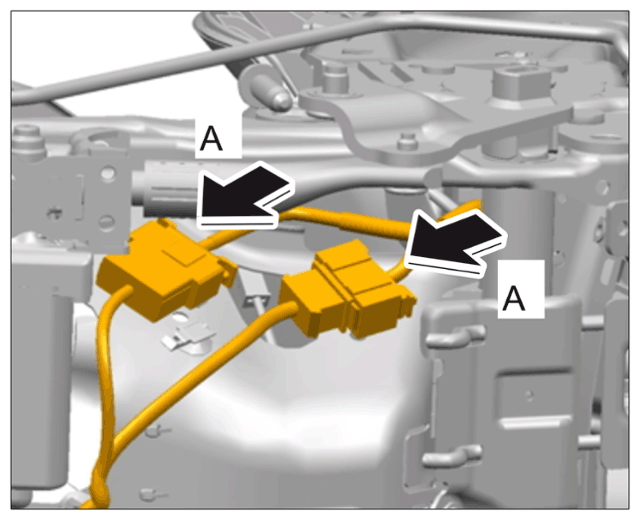

   Connector on wire harness for backrest
