Installing Trim Panel For Seat: Notes

Information

Fixing clips on the seat frame will be damaged irreparably during removal. Replace expansion rivets and fixing clips during installation and do not re-use them.

Information

Check that the wiring harness for the seat adjustment is correctly routed:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Routing of wiring harness

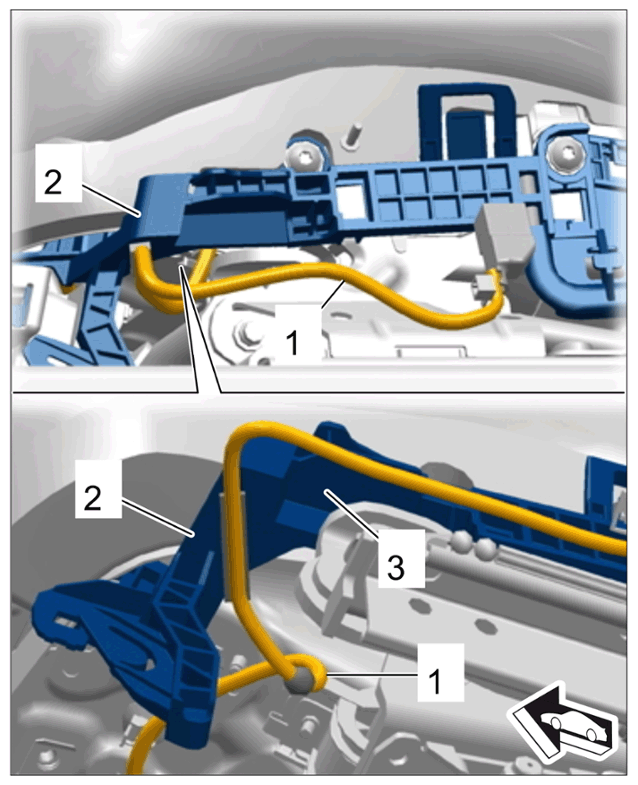

Route the wiring harness -1-  in the front area under  the bracket -2-  and in the side  area along the bracket -2-  . In the side area, position the wiring harnesses above the sealing surface -3-  .

Once correctly routed, secure the wiring harness in the clips or with tie-wraps.

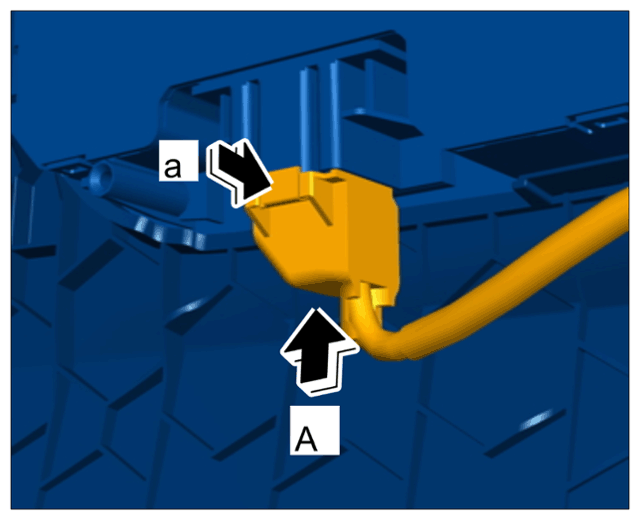

1. Connect electric plug connection for seat adjustment -arrow A-  and lock it -arrow a-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug connection for seat adjustment

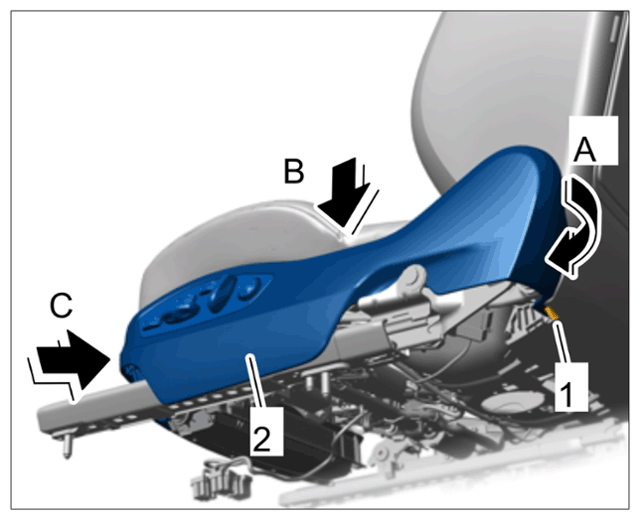

2. Fit trim panel for seat -2-  at the front -arrow C-  and guide it in at the rear from above -arrow B-  into the seat -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim panel for seat

3. Secure trim panel for seat -2-  with the expansion rivets -1-  .
