Removing Front CUPHOLDER

Information

• The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment.
• The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant.
• Some steps must be carried out automatically.
• Some of the repair illustrations show only one side of the vehicle.

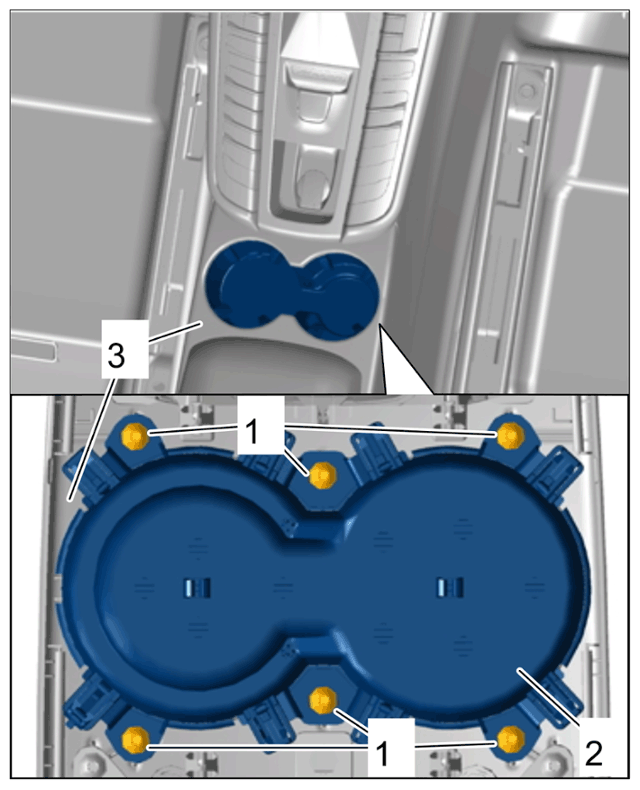

1. Unscrew screws "-1-" and remove front cupholder "-2-" from the storage compartment "-3-".

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front cupholder
