Technical Values

Location De... Type Basic v... Toleran... Toleran...
The screws on the top of the holder of the distance measuring sensor control unit Position 3 Tightening torque 8 Nm
G15152155Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor control unit

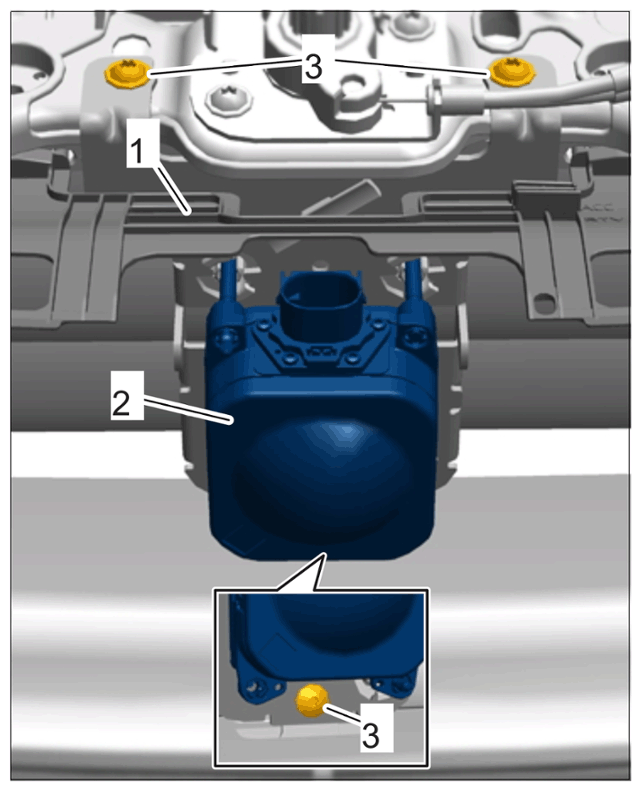

The screws on the bottom of the holder of the distance measuring sensor control unit Position 3 Tightening torque 2.5 Nm
G15152156Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Distance measuring sensor control unit
