Removing Battery Sensor

Information

Switch off all loads and keep transmitter key outside of the transmission range (at least 2 metres/6 feet).

• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.

Information

The battery sensor and battery ground strap form one unit and can only be replaced together.

1. Disconnect battery ground strap.
   • WM, 2X00IN - WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY
2. Remove battery sensor.

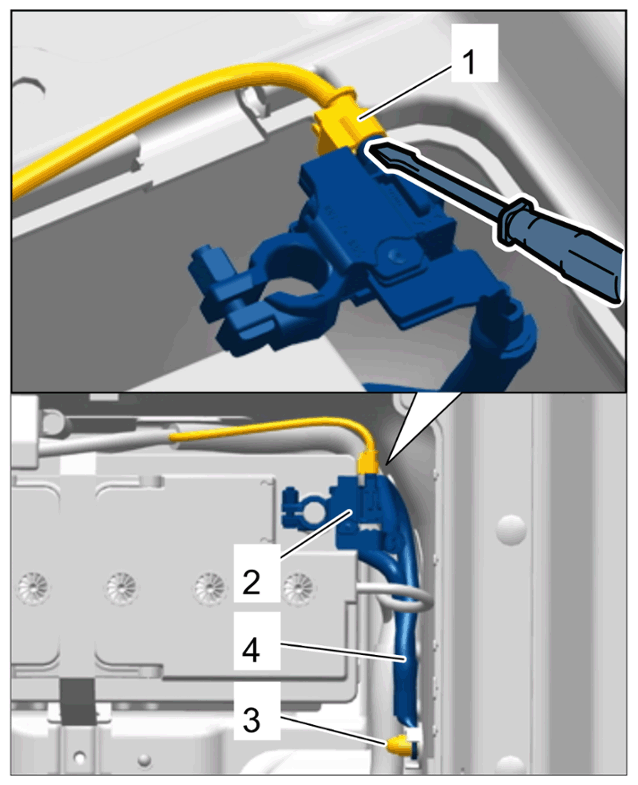

   1. 2.1  Release electric plug connection -1-  and disconnect it from the battery sensor -2-  .
   2. 2.2  Unscrew fastening nut -3-  and remove battery sensor -2-  with ground line -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Battery sensor
