Assembly Overview - Flywheel And Double Clutch

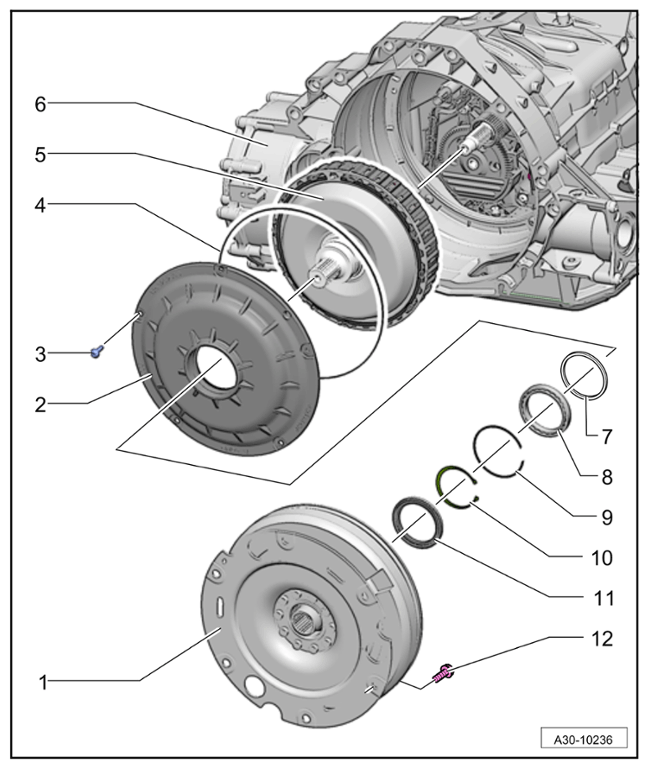

Fig 1: Exploded View Of Flywheel And Double Clutch Assembly With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assembly overview - flywheel and double clutch

1	Flywheel
2	Cover on double clutch
3	Screw/check tightening sequence!/replace > Tightening - torque + 10 Nm (7.4 ftlb.)
4	O-ring/replace
5	Double clutch
6	Transmission housing
7	Thrust washer, installed depending on type.
8	Ball bearing
9	Circlip - always replace circlip following removal.
10	Circlip - always replace circlip following removal.
11	Input shaft sealing ring - always replace sealing ring following removal.
12	Screw/replace > Tightening - torque 60 Nm (44.3 ftlb.)

Tightening torque and tightening sequence for double clutch cover:

Tighten screws in the sequence -1 to 5- in three steps as follows:

Screw in evenly by hand until the screw head is touching the clutch cover.
Tighten one after the other in > Torque angle + 90° steps until the cover on the double clutch is touching the transmission housing.
Tighten with > end - tightening + 10 Nm (7.4 ftlb.)

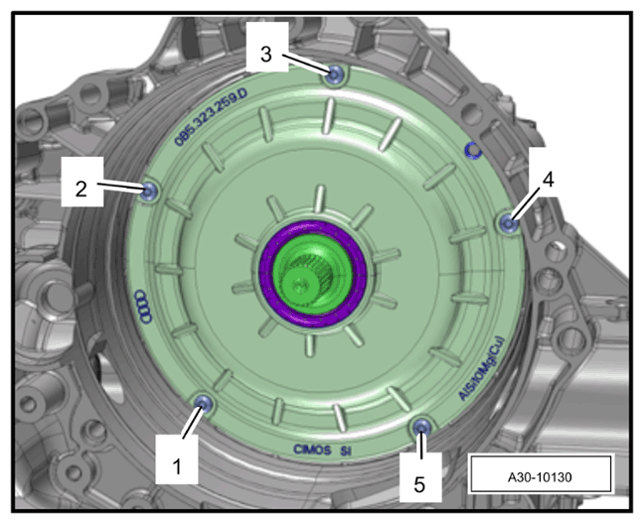

Fig 2: Double Clutch Cover Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening torque and tightening sequence for double clutch cover
