Tightening Torques For Rear Centre Air Vent

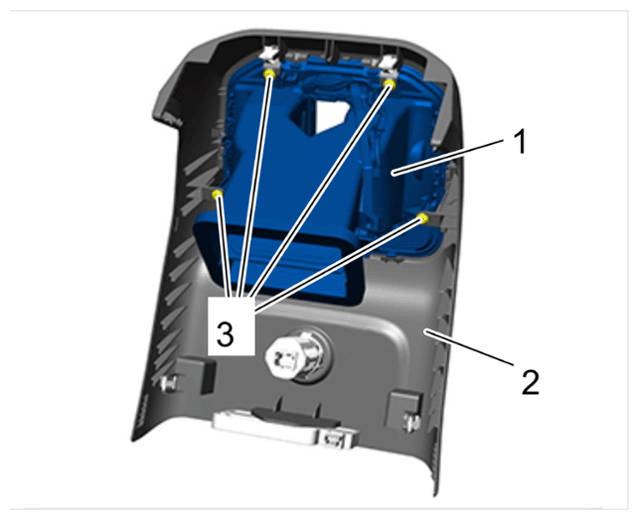

Fig 1: Rear Centre Air Vent Component Locations With Torque Specification
G15162231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear centre air vent

1  Rear centre air vent
2  Covering frame for centre consile
3  > Tightening - torque 1.5 Nm (1 ftlb.)
