Heating/Fresh-Air Unit

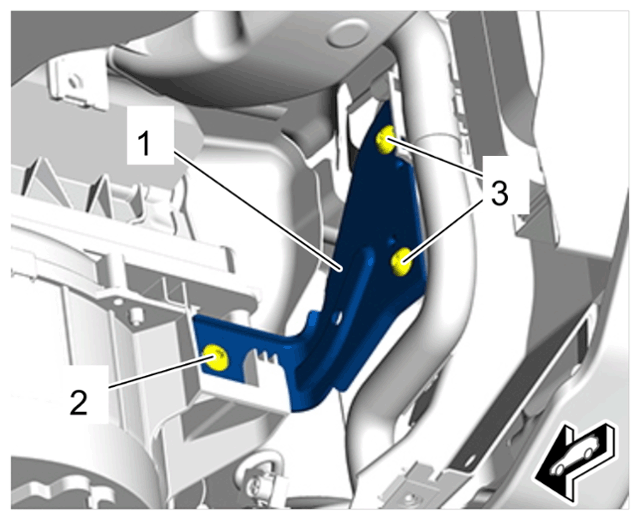

Fig 1: Air Intake Tract Holder Component Locations With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air intake tract holder

1	Air intake tract holder
2	Screw > Tightening - torque 3.6 Nm (2.6 ftlb.)
3	Screws > Tightening - torque 9 Nm (6.5 ftlb.)

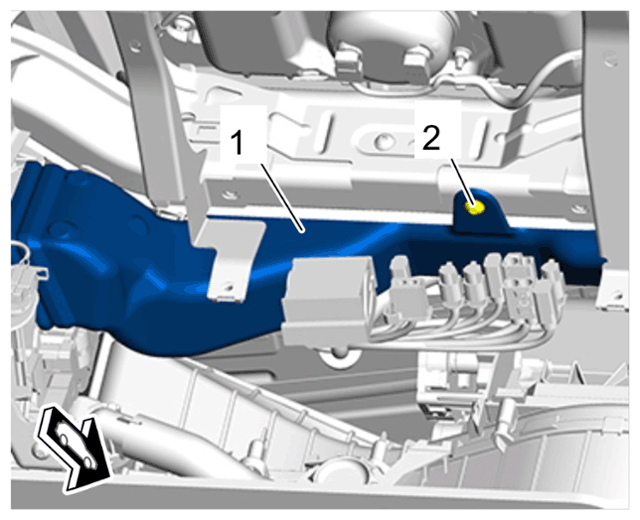

Fig 2: Air Guide For Right Dashboard Vent Component Locations With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air guide for right dashboard vent

1	Air guide
2	Screw > Tightening - torque 1.5 Nm (1 ftlb.)
