8X Air Conditioning - General -- 95B - MACAN (95B)
>>
WM, 8X00IN - Technical Values - Air Conditioning
>>
Technical Values - Auxiliary Heating
>>

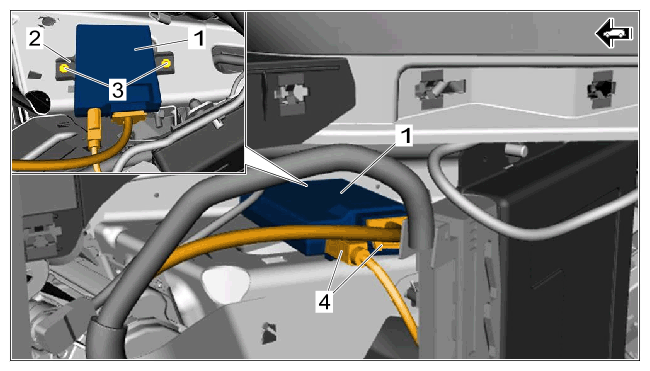

Auxiliary Heater Antenna
Auxiliary Heater Antenna
Location
Description
Type
Basic value
Tolerance
Screw securing auxiliary heater antenna to body
Item 3
Tightening torque
2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

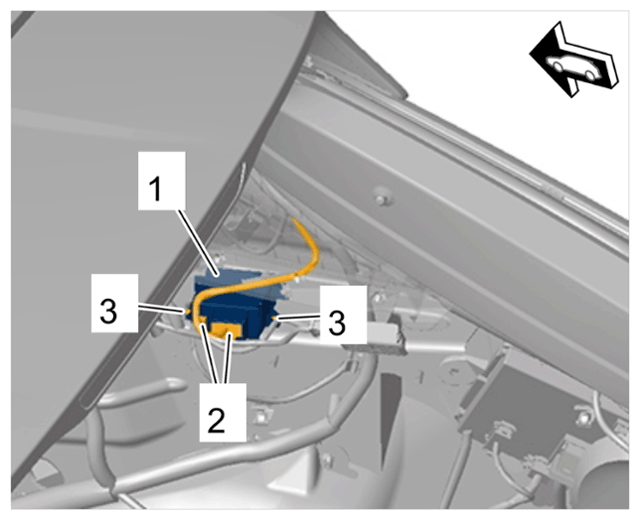

Auxiliary heater antenna
Location
Description
Type
Basic value
Tolerance
Screw securing auxiliary heater antenna holder to body
Item 3
Tightening torque
1.5 Nm (1.25 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Auxiliary heater antenna
