Technical Values - Air Conditioner/Compressor
>>
Pressure Switch
Pressure Switch

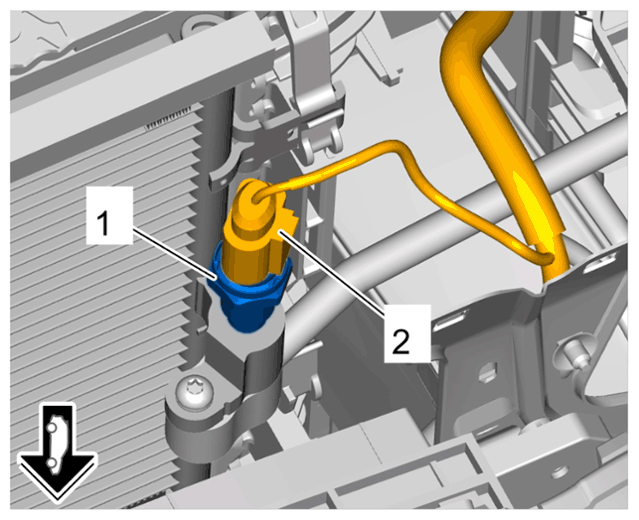

Fig 1: Pressure Switch Component Locations With Torque Specification
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pressure switch
1
Pressure switch >
Tightening - torque 8 Nm (6 ftlb.)
