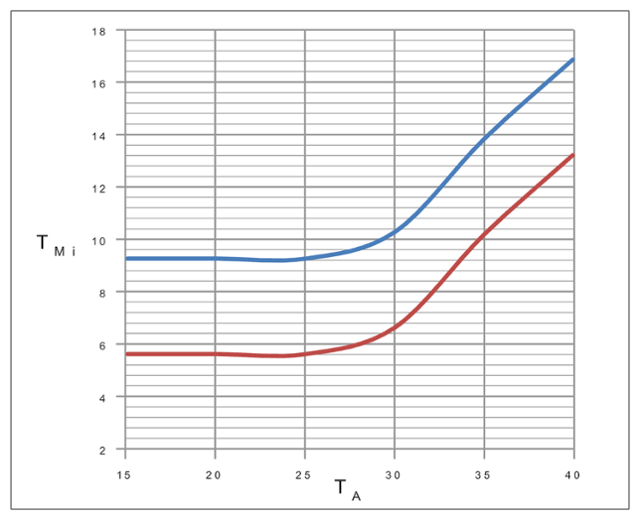

Centre Vent Temperature As A Function Of Outside Temperature

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre vent temperature

Blue	Upper limit
Red	Lower limit
TA	Outside temperature (°C)
TMi	Centre vent temperature (°C)
