Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance1 Tolerance2

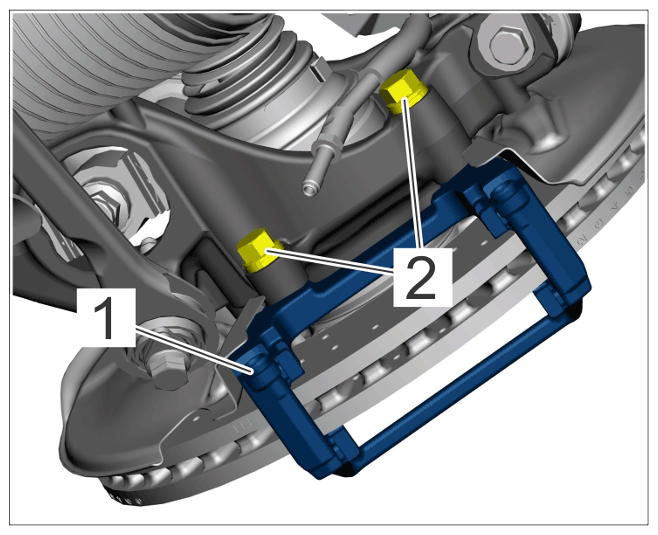

Brake calliper carrier to wheel bearing housing (all variants) Item 2: M12/al ways use new screws or bolts following removal Initial tightening 100 Nm (74 ftlb.)
G15155446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper carrier to wheel bearing housing
Brake calliper carrier to wheel bearing housing (all variants) Item 2: M12/al ways use new screws or bolts following removal Final tightening + 90°
G15155448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake calliper carrier to wheel bearing housing
Brake hose to brake calliper Do not twist brake hose Tightening torque 20 Nm (15 ftlb.)
