Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Brake calliper (18-inch - grey/red) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace screws/bolts following removal	Initial tightening	30 Nm (22 ftlb.)

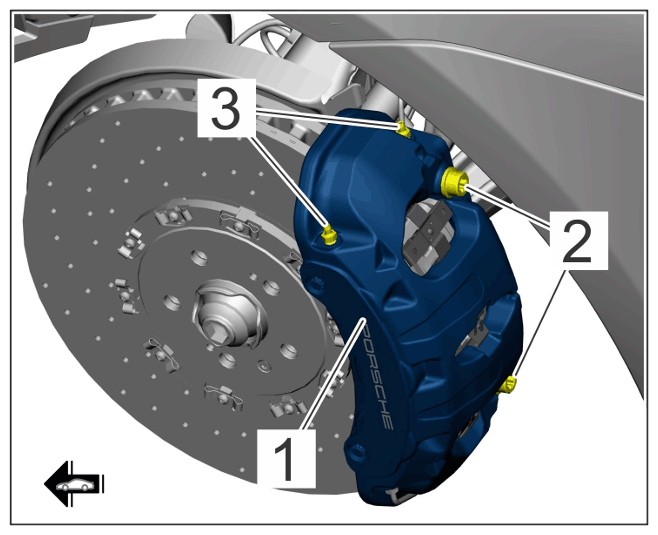

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (18-inch - grey/red) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 115/always replace screws/bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (19-inch PCCB/PSCB - yellow/white) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 135/always replace screws/bolts following removal	Initial tightening	30 Nm (22 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake calliper (19-inch PCCB/PSCB - yellow/white) to wheel bearing housing	Item 2: Screw, M14 x 1.5 x 135/always replace screws/bolts following removal	Final tightening	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front brake calliper - view of radial bolts
Brake hose holder to wheel bearing housing and body	Item 2: Screw, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

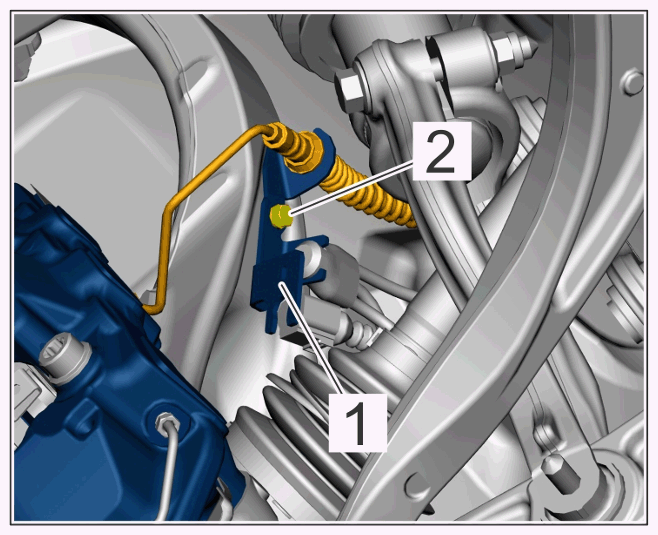

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake hose holder to wheel bearing housing
