Removing Brake Booster Vacuum Pump

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. Let hot components cool down.
2. Wear personal protective gear.

Remove brake booster vacuum pump -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

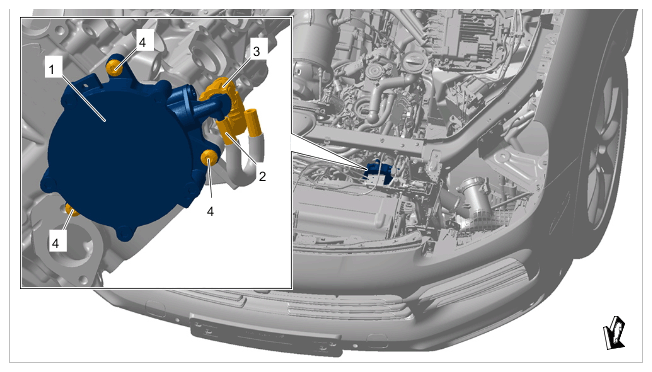

Brake booster vacuum pump
1. 1.1 Disconnect vacuum hose -2- from brake booster vacuum pump -1- .
2. 1.2 Release and disconnect hose connection -3- .
3. 1.3 Unscrew screws -4- .
4. 1.4 Remove brake booster vacuum pump -1- .
