Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic v... | Toleran... | Toleran... |
|---|---|---|---|---|---|

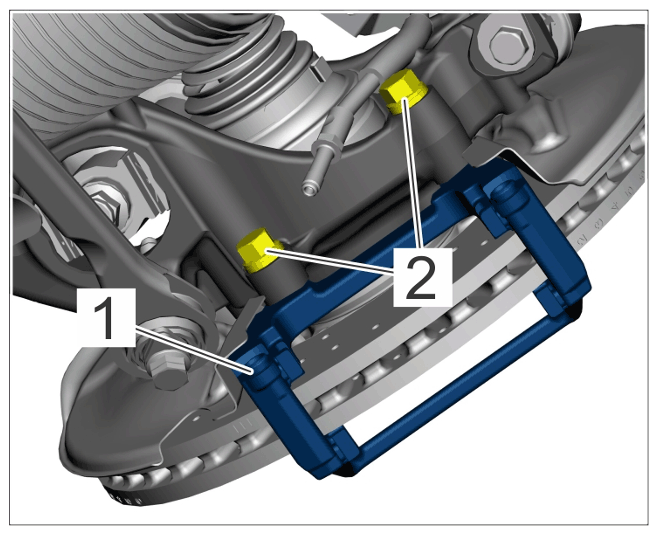

| Brake calliper carrier to wheel bearing housing (all variants) | Item 2: M12/al ways use new screws or bolts following removal | Initial tightening | 100 Nm (74 ftlb.) | ||
|
Brake calliper carrier to wheel bearing housing |
|||||
| Brake calliper carrier to wheel bearing housing (all variants) | Item 2: M12/al ways use new screws or bolts following removal | Final tightening | + 90° | ||
|
Brake calliper carrier to wheel bearing housing |
|||||
| Brake hose to brake calliper | Do not twist brake hose | Tightening torque | 20 Nm (15 ftlb.) | ||
