Removing Brake Master Cylinder

Information

When carrying out work during which fluids can escape, leave electric plug connections to be disconnected locked and connected for as long as possible. This prevents fluid from getting onto electric contacts and causing corrosion.

Information

Brake fluid - even thinned brake fluid - causes corrosion on electric contacts, thereby impairing functions.

1. Disconnect vacuum lines -1-  from plastic bracket -2-  .

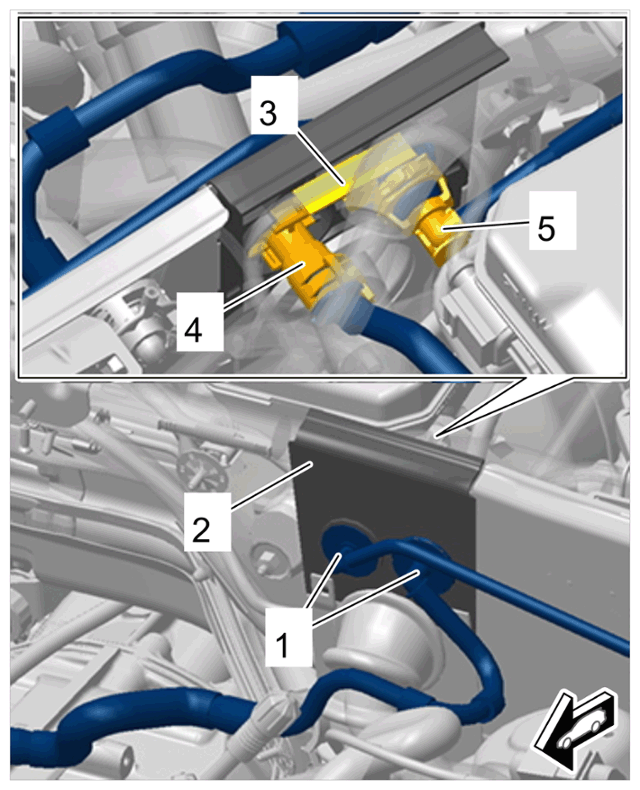

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum lines on plastic bracket

   1. 1.1 Unclip clip -3-  .
   2. 1.2 Release quick connectors -4 and 5-  and disconnect vacuum lines.
   3. 1.3 Unclip vacuum lines -1-  from plastic bracket -2-  and remove plastic bracket -2-  .

   Information

   • Any escaping brake fluid must be removed immediately. Rinse contacts with water and dry them if necessary.
2. Disconnect brake lines -1-  on the brake master cylinder -2-  .

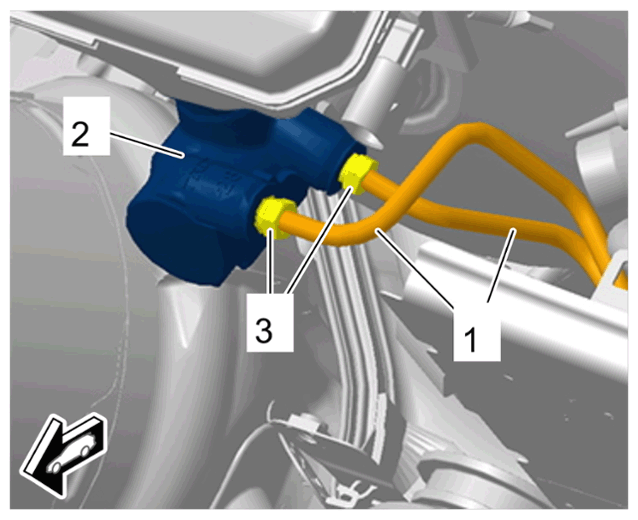

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake lines on brake master cylinder

   1. 2.1 Place suitable aids underneath the brake master cylinder -2-  to catch escaping brake fluid.
   2. 2.2 Unscrew union nuts on brake lines -3-  and disconnect brake lines -1-  from the brake master cylinder -2-  .
   3. 2.3 Close off line connections using stoppers and move brake lines -1-  aside carefully.
   4. 2.4 Close off connections on brake master cylinder -2-  using stoppers.
3. Remove brake master cylinder -1-  .

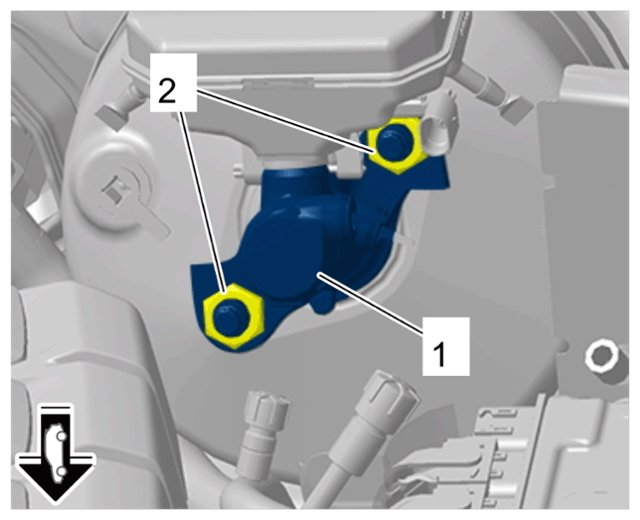

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake master cylinder

   1. 3.1 Unscrew nut -2-  .
   2. 3.2 Remove brake master cylinder -1-  by pulling it forward off the brake booster.
