Installing Brake Master Cylinder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

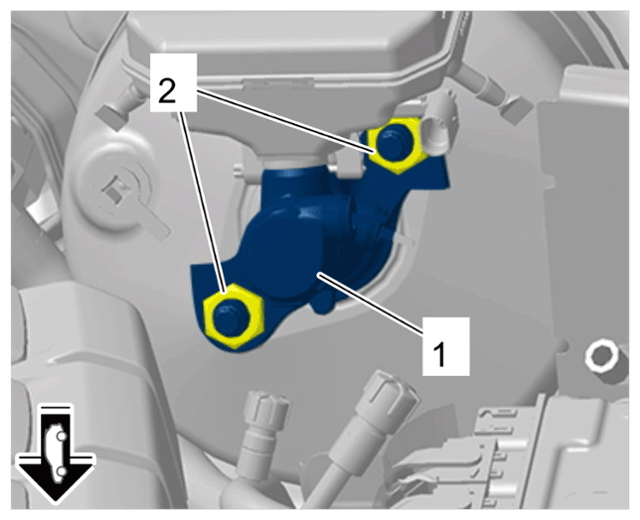

Brake master cylinder

1. 1.1 Move brake master cylinder -1-  into installation position.
2. 1.2 Screw on and tighten new nuts -2-  .

   > Tightening - torque 49 Nm (36 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

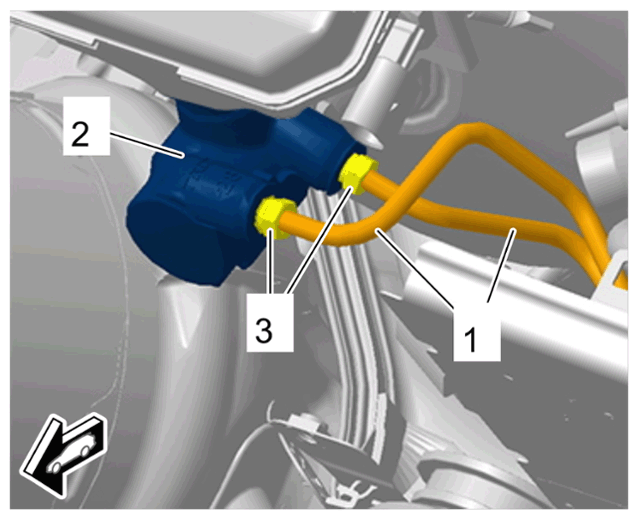

Brake lines on brake master cylinder

1. 2.1 Insert brake lines -1-  in brake master cylinder -2-  .
2. 2.2 Screw in and tighten union nuts on brake lines -3-  .

   Left-hand drive  : > Tightening - torque 14 Nm (10.5 ftlb.)

   Right-hand drive:  > Tightening - torque 18 Nm (13 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

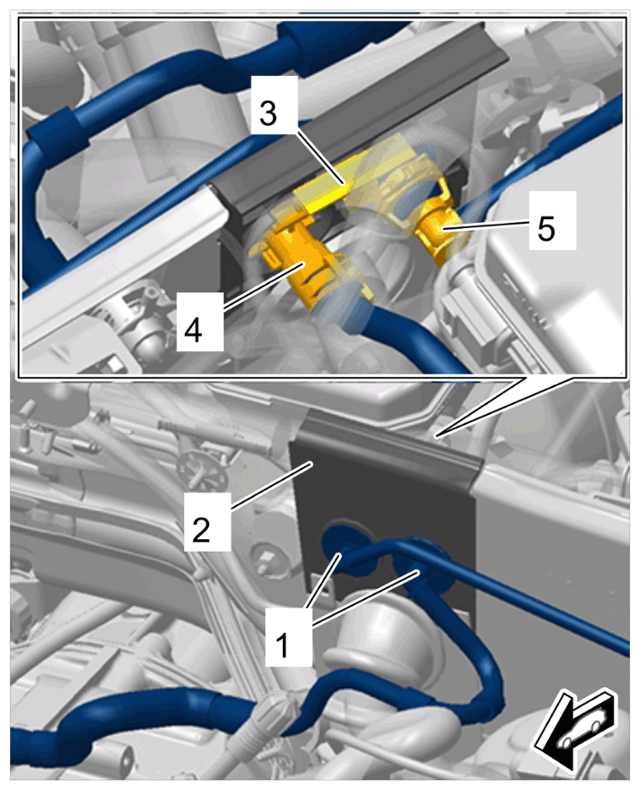

Vacuum lines on plastic bracket

1. 3.1 Install plastic bracket -2-  .
2. 3.2 Clip vacuum lines -1-  into plastic bracket -2-  .
3. 3.3 Connect quick connectors -4 and 5-  until they engage securely.
4. 3.4 Clip in clip -3-  .
