Installing Brake Fluid Reservoir

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

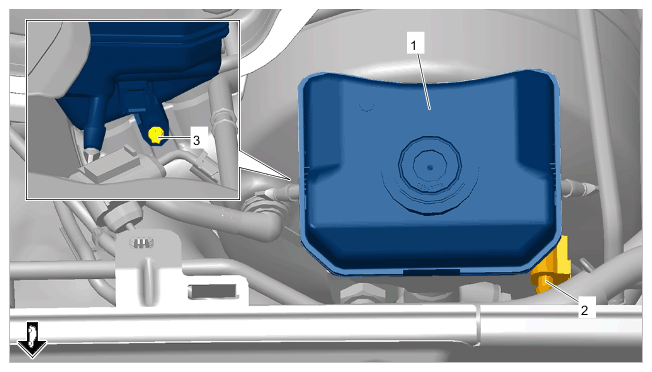

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake fluid reservoir
1. 1.1 Tighten screw on brake fluid reservoir -3- .
  > Tightening - torque 5 Nm (3.5 ftlb.)
2. 1.2 Fill brake fluid into the brake fluid reservoir until the brake fluid level is between MIN and MAX.
3. 1.3 Remove any emerging brake fluid immediately using suitable aids; clean affected components with water and dry them.
