Component Overview - Control Mechanism For Transmission

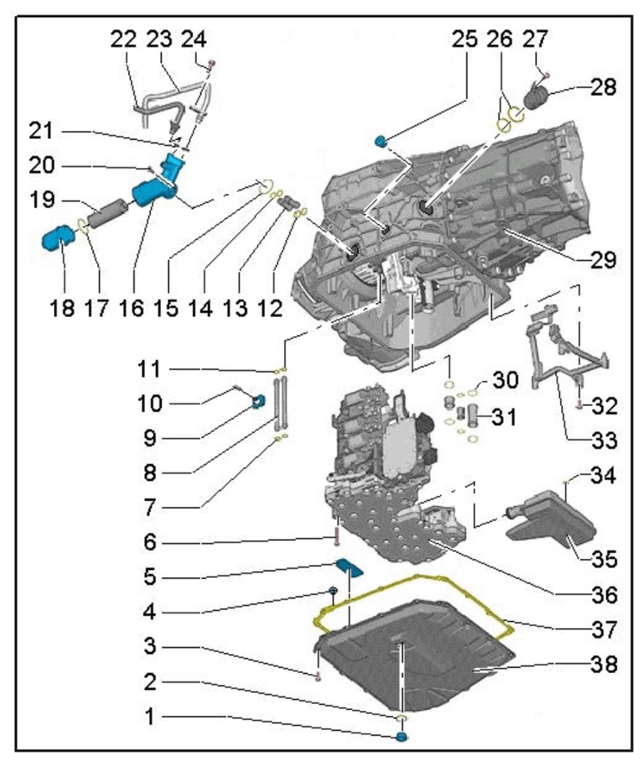

Fig 1: Exploded View Of Mechatronics With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mechatronics

1. ATF drain plug > Tightening - torque 45 Nm (33 ftlb.)
2. Sealing ring /replace
3. Screw > Tightening - torque 10 Nm (7.5 ftlb.)
4. Expansion rivet

   In original equipment for securing seal to ATF oil pan

   Not absolutely necessary for installation

5. Magnet

   Clean magnet when changing ATF

6. Screws /replace  > Initial - tightening 8 Nm (6 ftlb.)  > Final tightening + 90°
7. O-rings /replace
8. ATF pressure pipes
9. Retaining bracket for ATF pressure pipes
10. Screw > Tightening - torque 10 Nm (7.5 ftlb.)
11. O-rings /replace
12. O-rings /replace
13. ATF oil pipes
14. O-rings /replace
15. O-ring /replace
16. ATF filter housing
17. O-ring /replace
18. ATF filter housing cover
19. ATF spin-on filter
20. Screw > Tightening - torque 10 Nm (7.5 ftlb.)
21. O-rings /replace
22. ATF return line
23. ATF supply line
24. Screw > Tightening - torque 20 Nm (15 ftlb.)
25. ATF filler plug and inspection plug > Tightening - torque 60 Nm (44 ftlb.)
26. O-rings /not available individually
27. Screw > Tightening - torque 8 Nm (6 ftlb.)
28. Connector housing with O-rings
29. Transmission housing
30. O-rings /not available individually
31. ATF oil pipes with O-rings
32. Screw > Tightening - torque 8 Nm (6 ftlb.)
33. Cable guide for rpm sensors
34. O-ring /replace
35. ATF suction filter
36. Control mechanism for transmission
37. Seal /replace
38. ATF oil pan
