Component Overview - Selector Lever, Locking Cable

WARNING: This page is about a different variant/trim than selected.

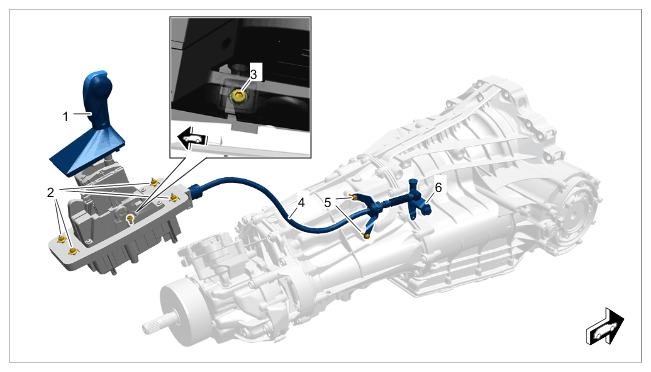

Fig 1: Selector Support, Locking Cable Component Location With Torque Specification
G15153512Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview - selector support, locking cable

  1. Selector knob
  2. Nut on selector support > Tightening - torque 8 Nm (6 ftlb.)
  3. Adjusting screw for locking cable > Tightening - torque 13 Nm (9.5 ftlb.)
  4. Locking cable
  5. Screws for locking cable > Tightening - torque 8 Nm (6 ftlb.)
  6. Selector lever
