Component Overview - Selector Lever, Locking Cable

WARNING: This page is about a different variant/trim than selected.

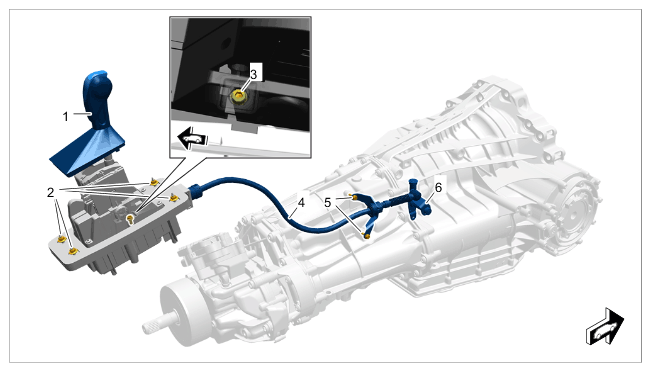

Fig 1: Selector Support, Locking Cable Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview - selector support, locking cable

1	Selector knob
2	Nut on selector support > Tightening - torque 8 Nm (6 ftlb.)
3	Adjusting screw for locking cable > Tightening - torque 13 Nm (9.5 ftlb.)
4	Locking cable
5	Screws for locking cable > Tightening - torque 8 Nm (6 ftlb.)
6	Selector lever
